ALU locking rod PVC
Prices incl. VAT plus shipping costs
Delivery time 1-3 Workdays
| From 1 Pc. | 75.90 € * incl. VAT. |
| From 5 Pc. | 73.90 € * incl. VAT. |
| From 10 Pc. | 71.90 € * incl. VAT. |
- Order number: 18081920SLU

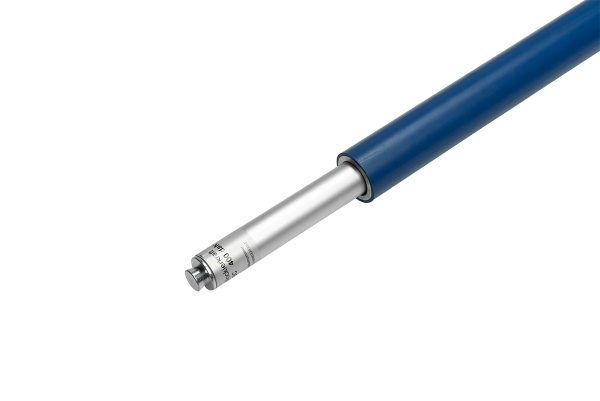

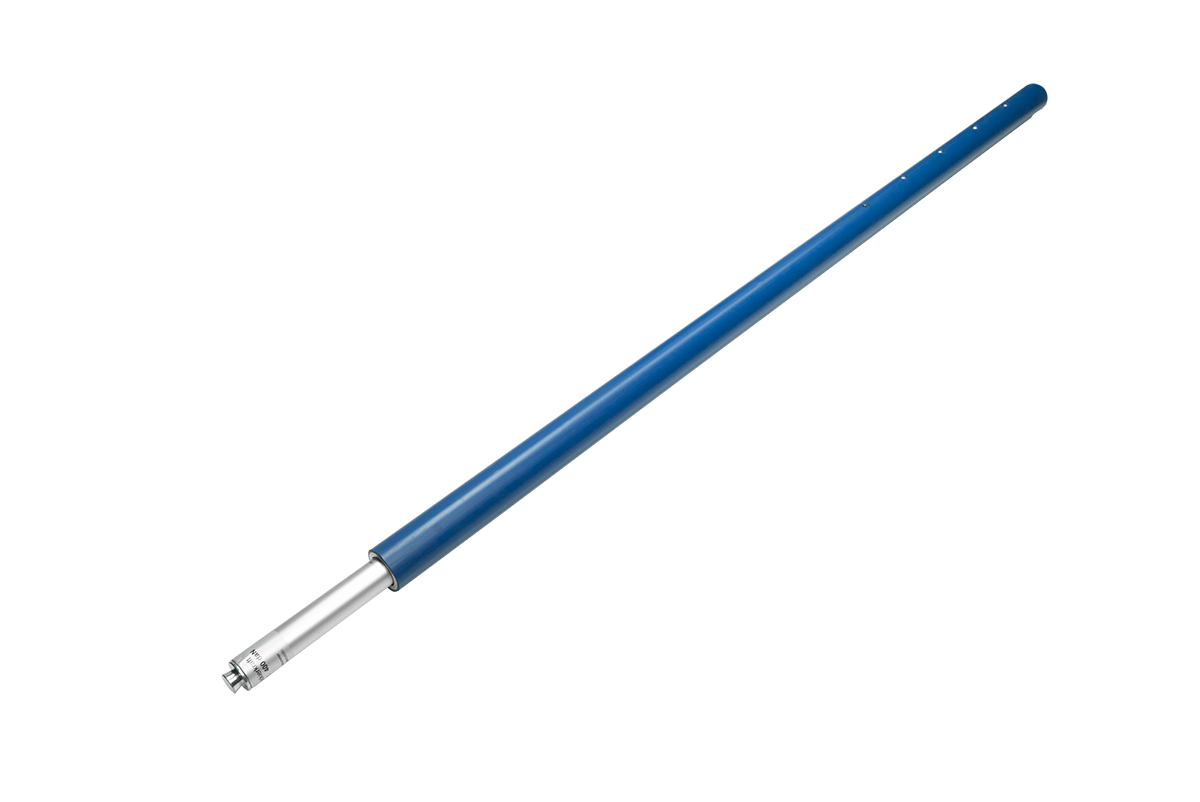

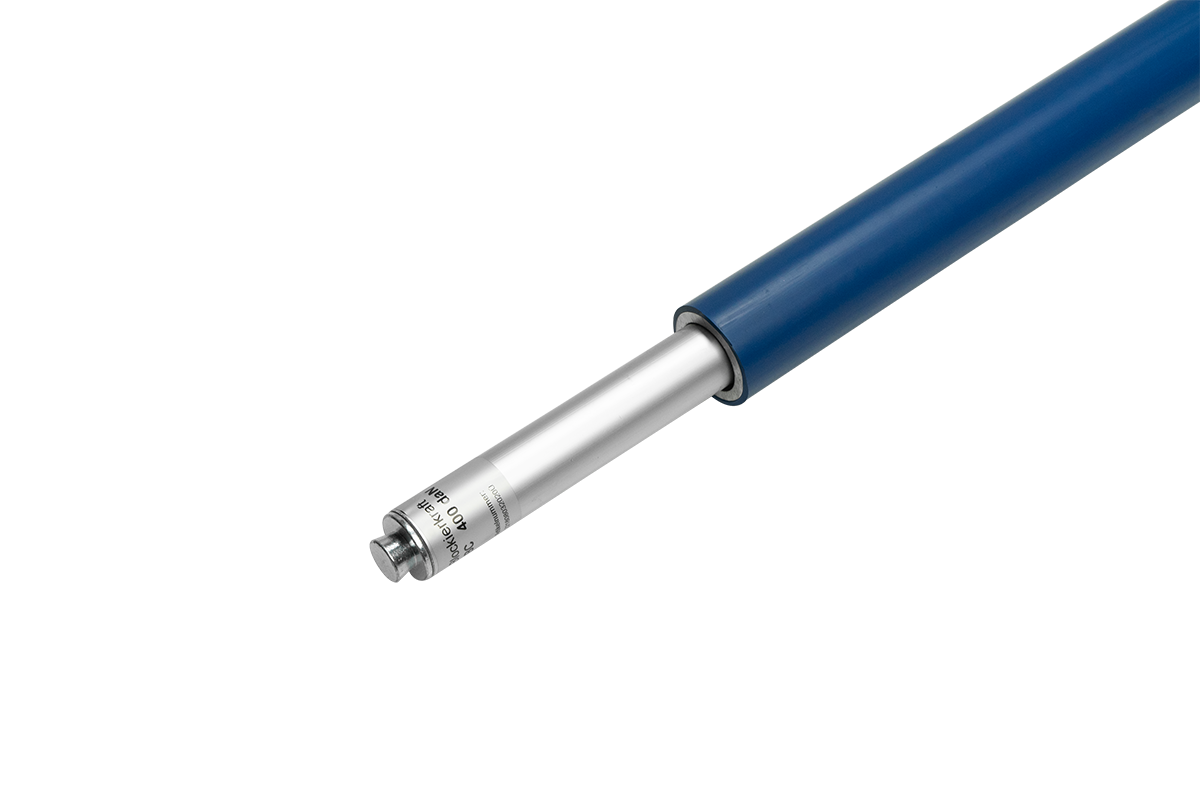

This aluminium round shoring beam is suitable for any airline track with a hole diameter of 20 mm. Horizontal shoring beams are primarily used for rear cargo securing. Its soft PVC sheathing protects delicate goods from damage. On one side the shoring beam is adjustable from 1670–2130 mm and on the other it has a spring insert.
How do I use the shoring beam?
Take the side of the shoring beam with the spring insert, insert it into the airline track and press it together. Then guide the other end of the shoring beam into the opposite track and relieve the pressure. Now check the shoring beam for a tight fit and you’re done!
How can I change the range of use of the shoring beam?
To change the range, you must drive out the cotter pin, ideally with a pin punch, an old matching nut or another suitable tool. After you have removed the cotter pin, you can adjust the inner tube and set it to the required vehicle inner width. Then you have to hammer the cotter pin back in.
| Article: | Airline track |
- Field of application: 1670 mm – 2130 mm
- Sheathing: extra strong PVC coating
- Pin version: for 20 mm hole pattern (e.g. airline track)
- Load capacity: 400 daN (DEKRA-certified)
Warnings against hand injuries
Warning: Safeguard before use!
Warning: Beware of load limit!
