LOADCARE LED airline track semi-circular | 12V
Prices incl. VAT plus shipping costs
Delivery time 1-3 Workdays
| From 1 Pc. | 47.90 € * incl. VAT. |
| From 5 Pc. | 43.90 € * incl. VAT. |
| From 10 Pc. | 39.90 € * incl. VAT. |
- Order number: 553201000LED

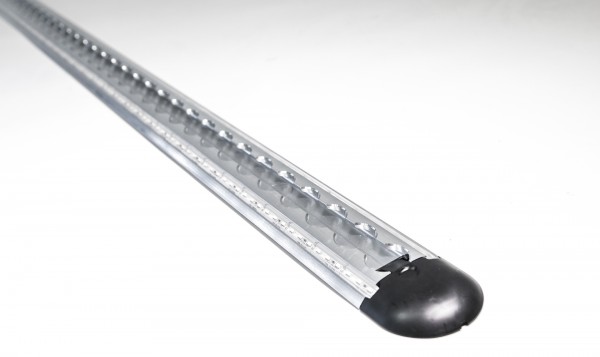

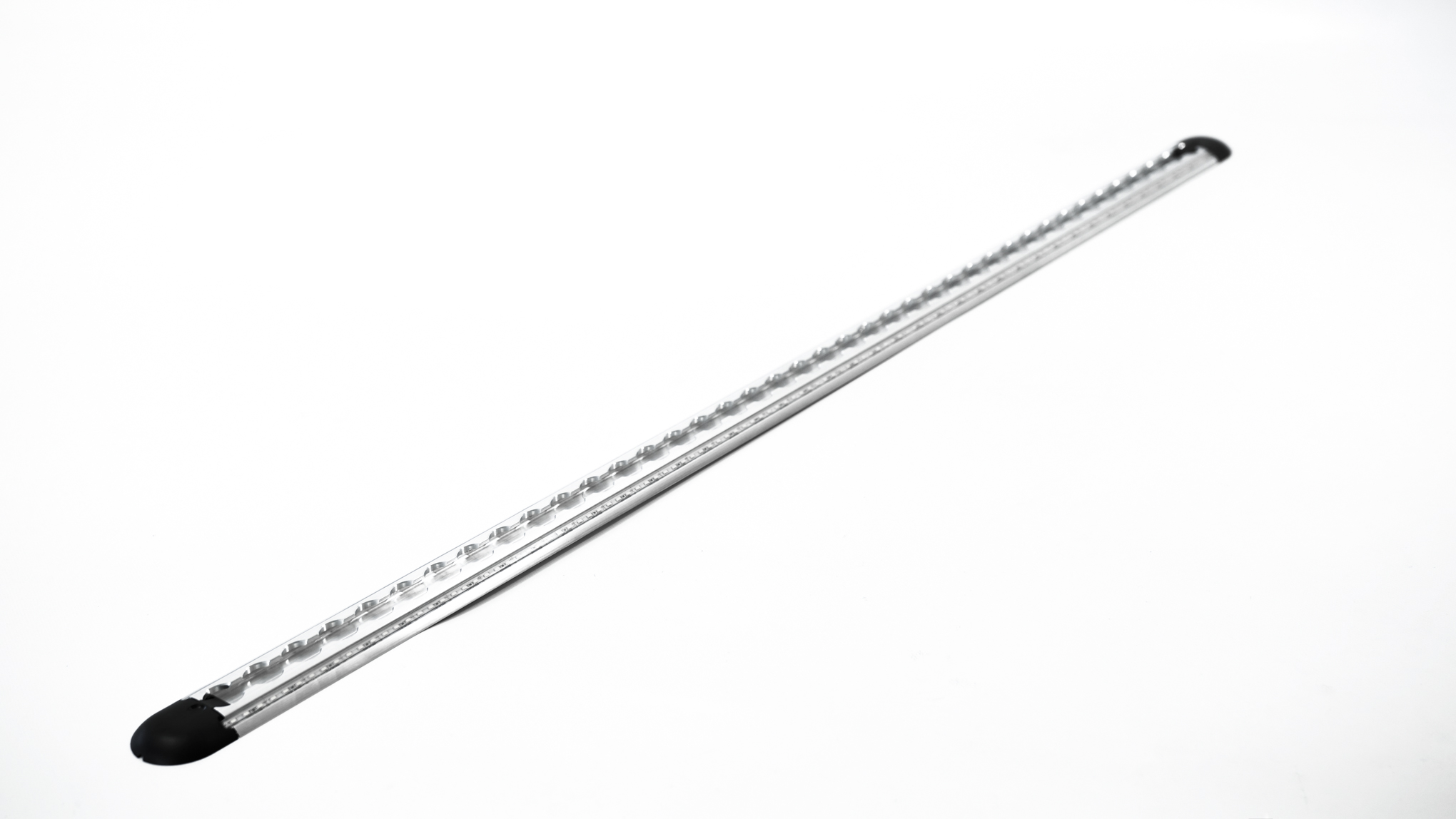

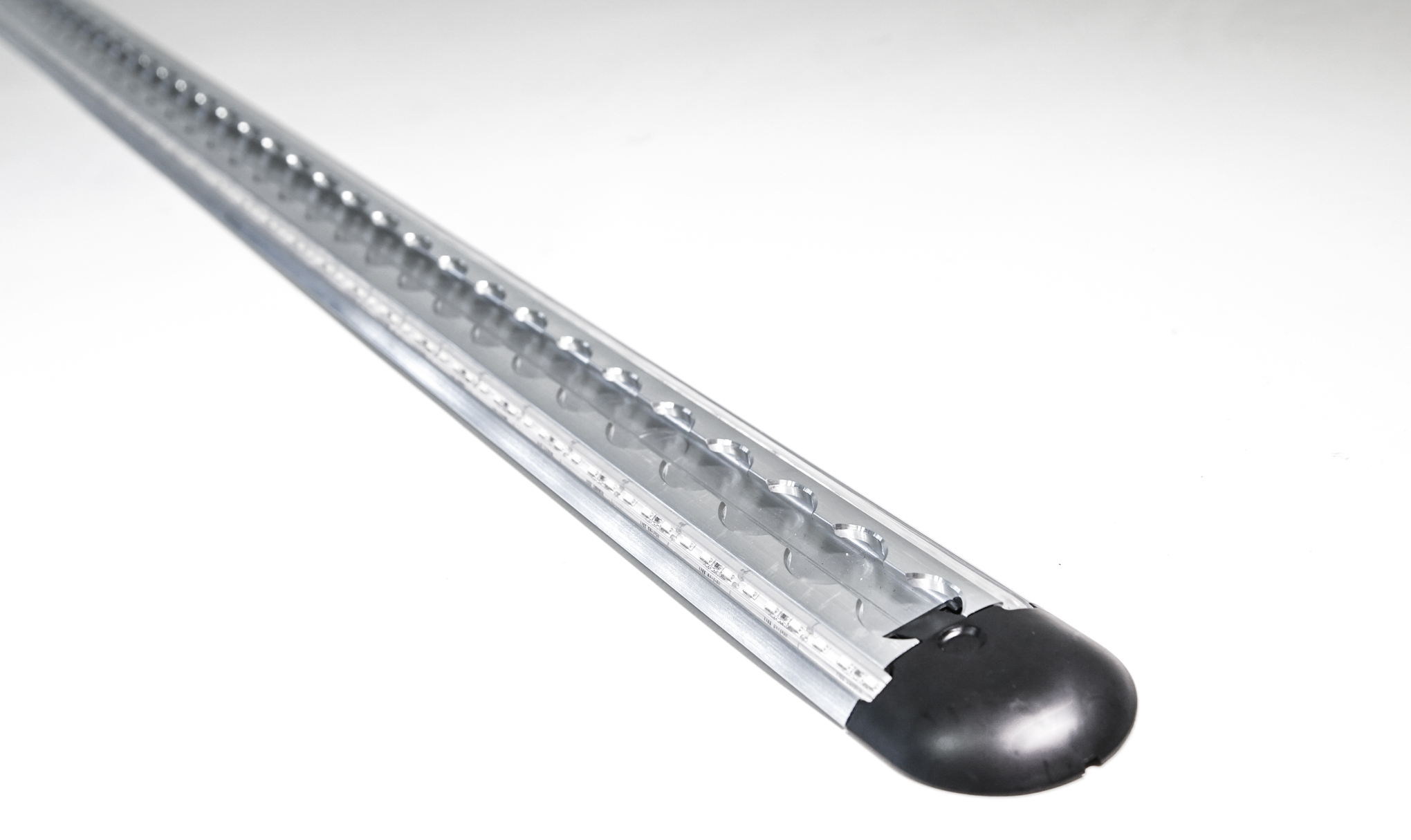

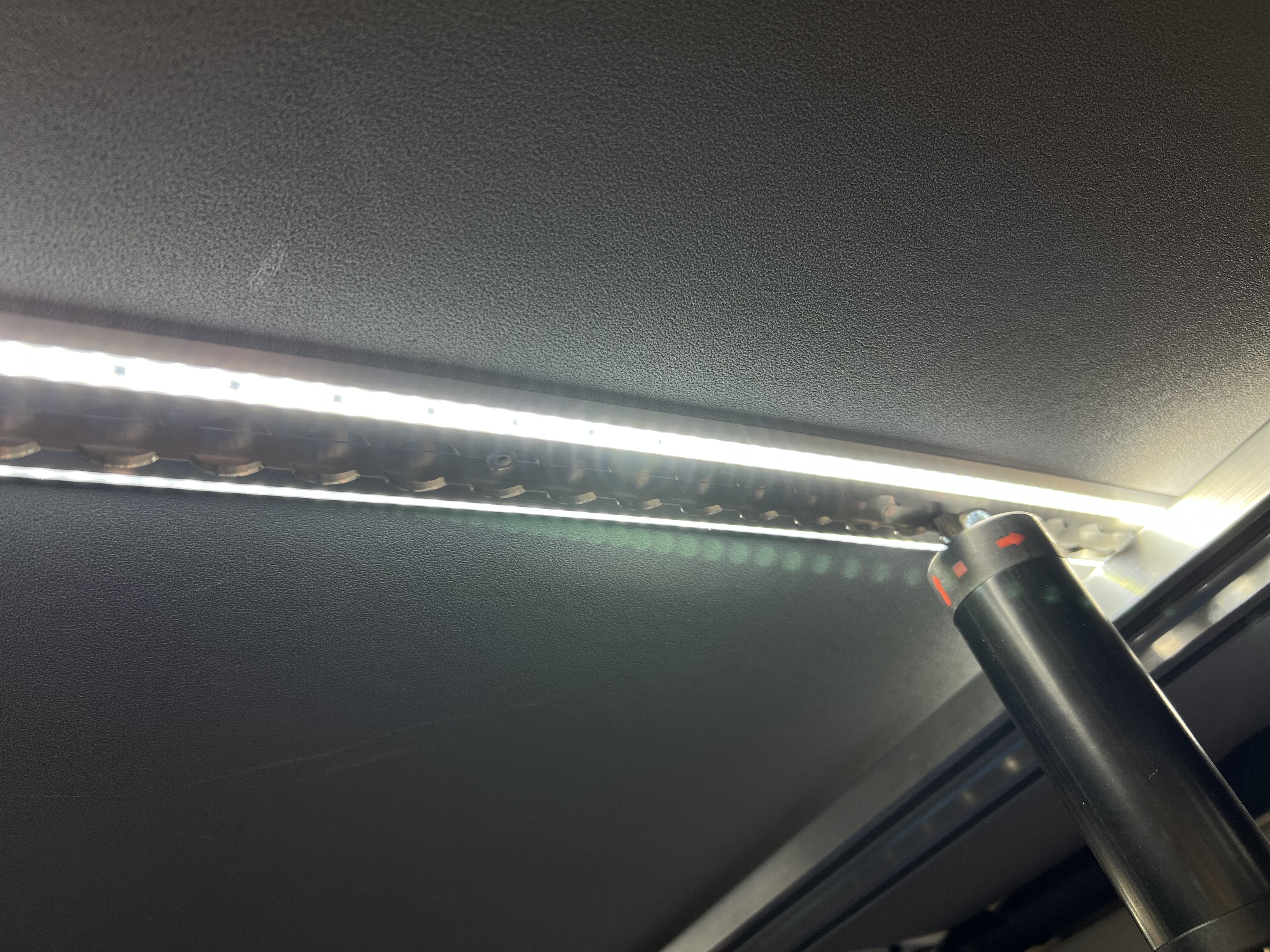

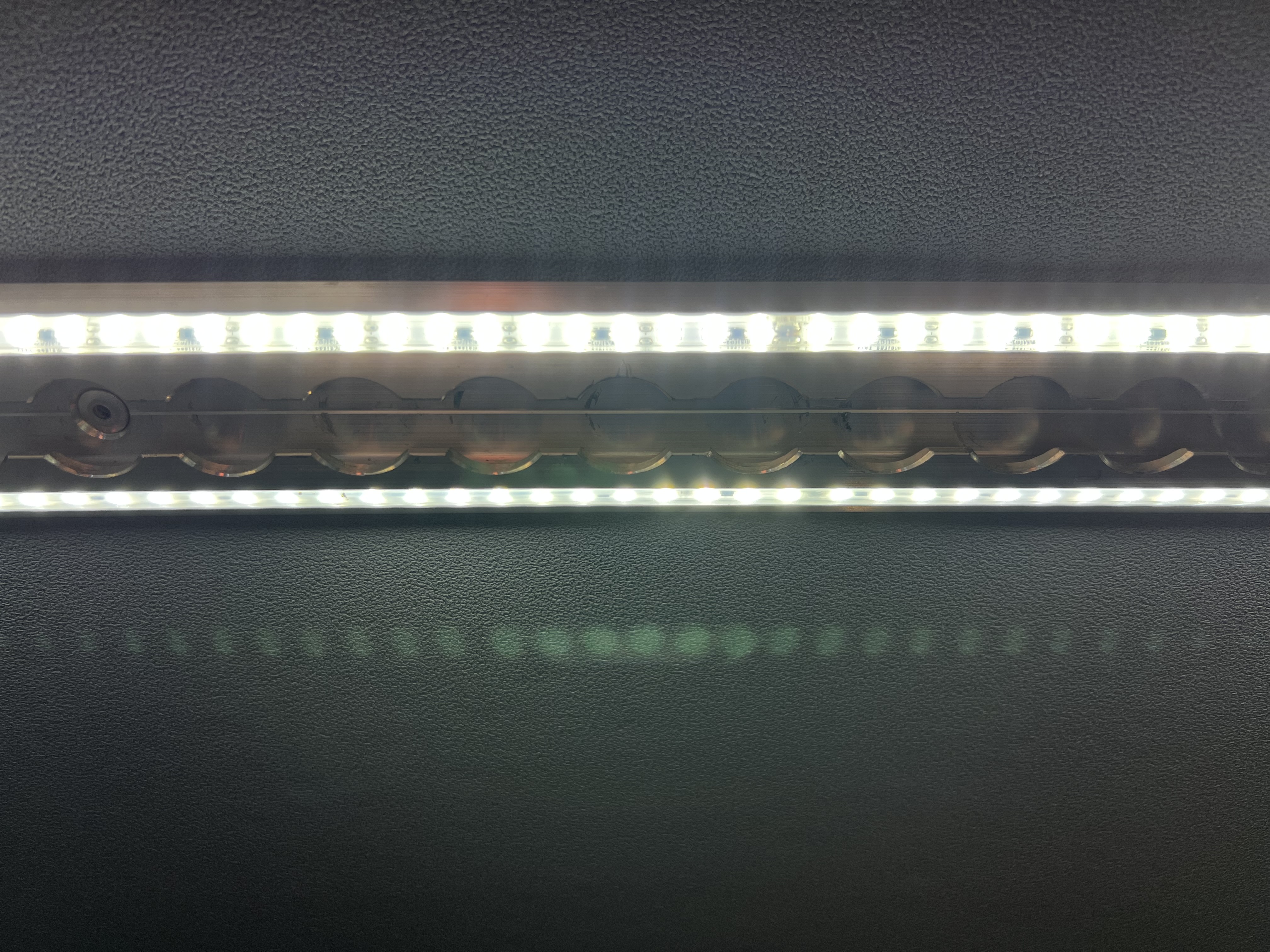

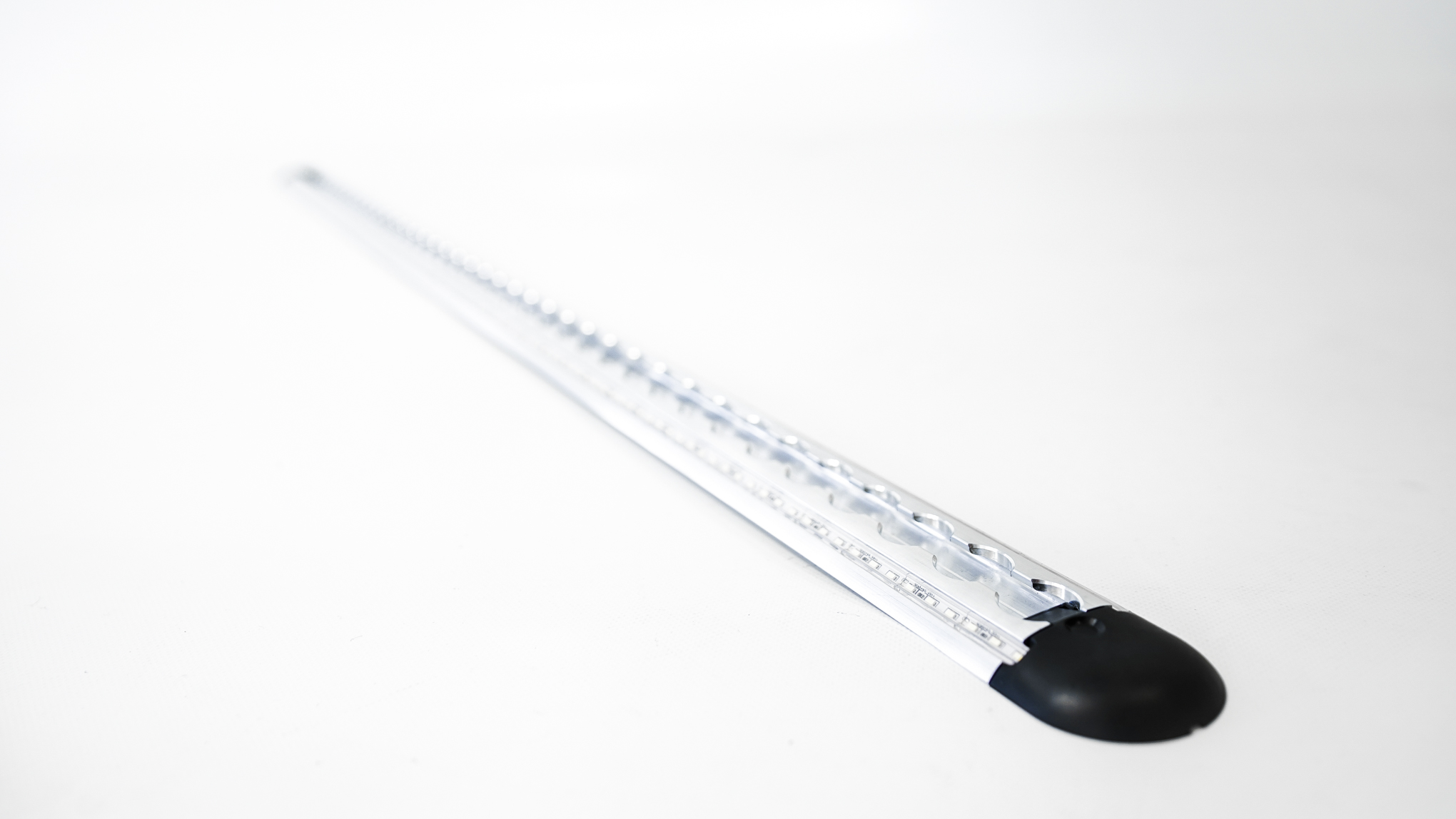

Airline track LED semi-circular
By viewing the video, you agree that your data will be transmitted to YouTube and that you have read the privacy policy.
Technical data of the LED strips:
- Rated voltage: 12 V
- Rated power: 11.3 W per LED strip (total power of the track 22.6 W)
- Colour temperature: 6500 K lumen
- 870lm per LED strip
- Protection class: IP67

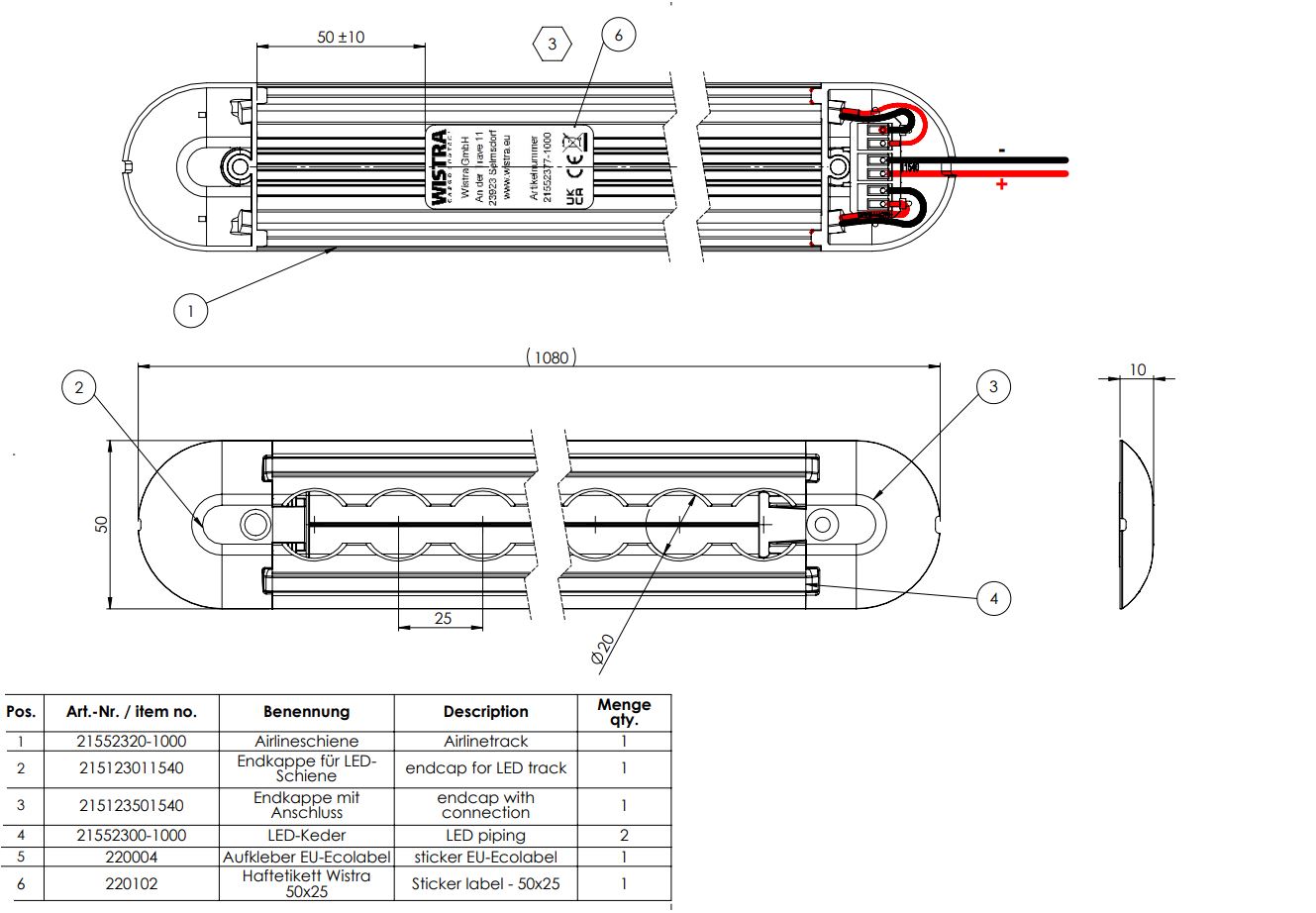

Technical data of the track:
- Length: 1000 mm
- Height: 11.5 mm
- Width: 50 mm
- Weight complete approx. 560gr.
The load capacity with single airline fitting is 500 daN in perpendicular tension and 350 daN in 45° oblique tension with recommended fastening with M5 countersunk screws DIN7991 10.9 every 75mm. The necessary stability of the base surface must be guaranteed!

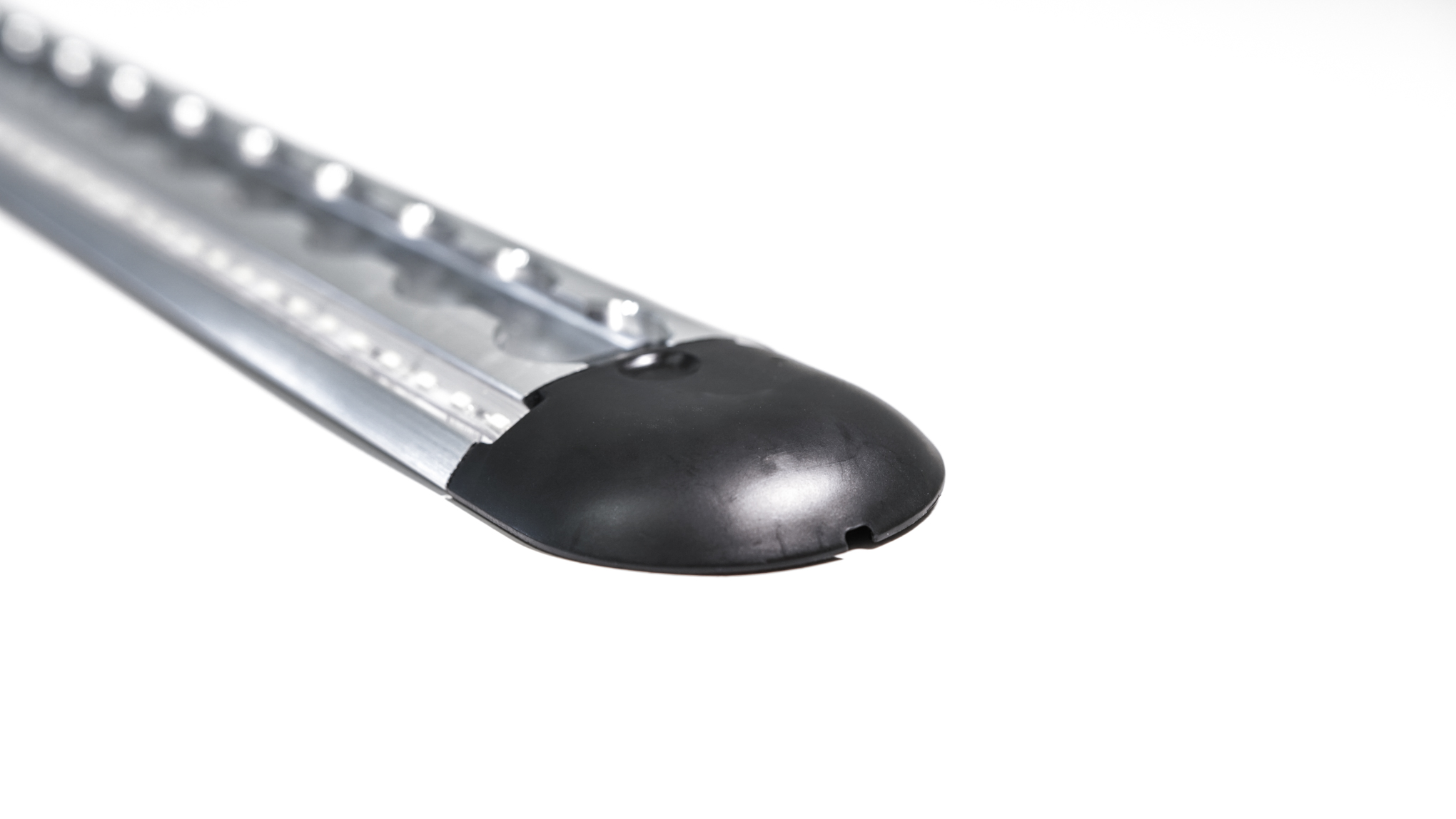

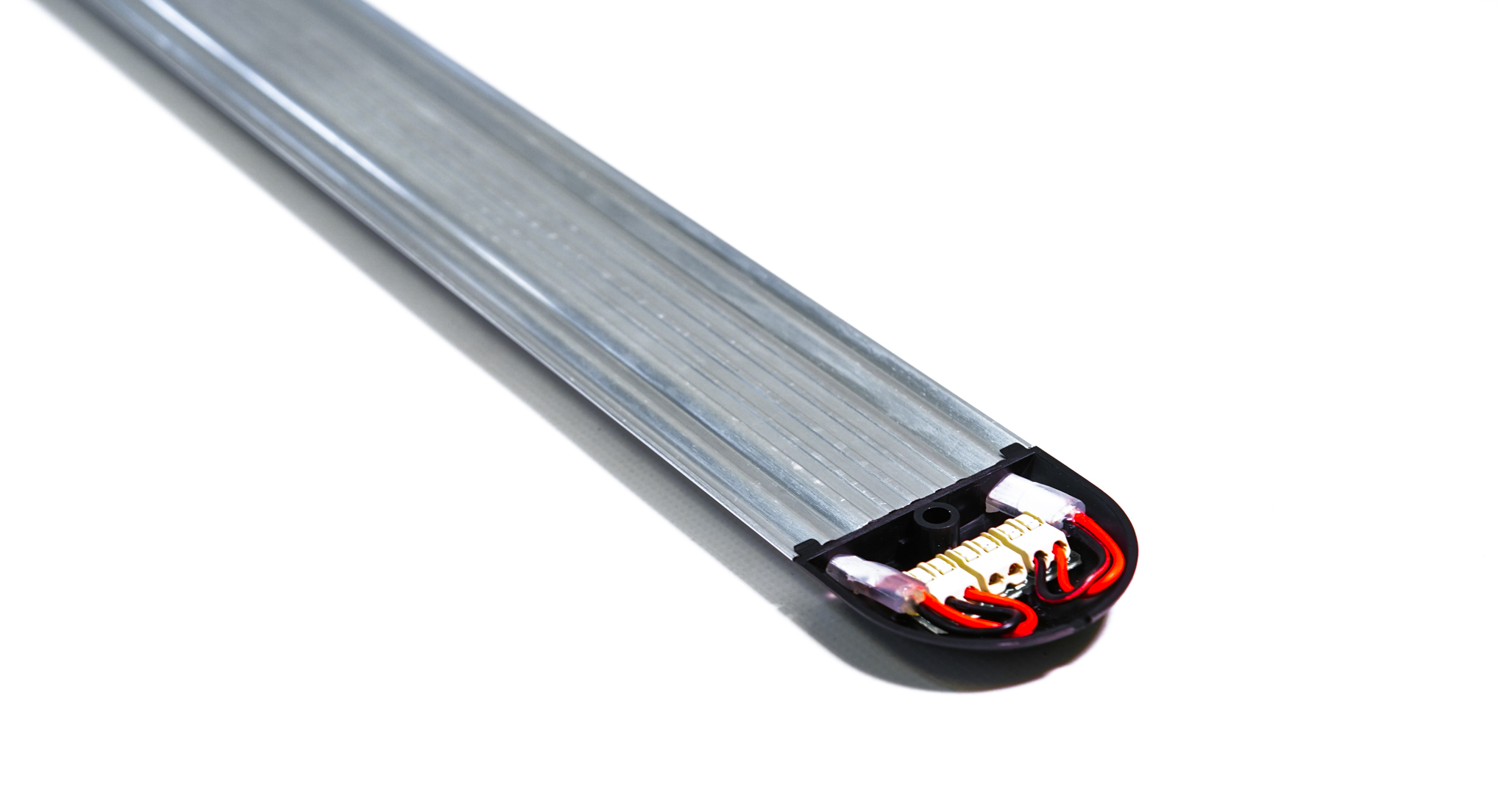

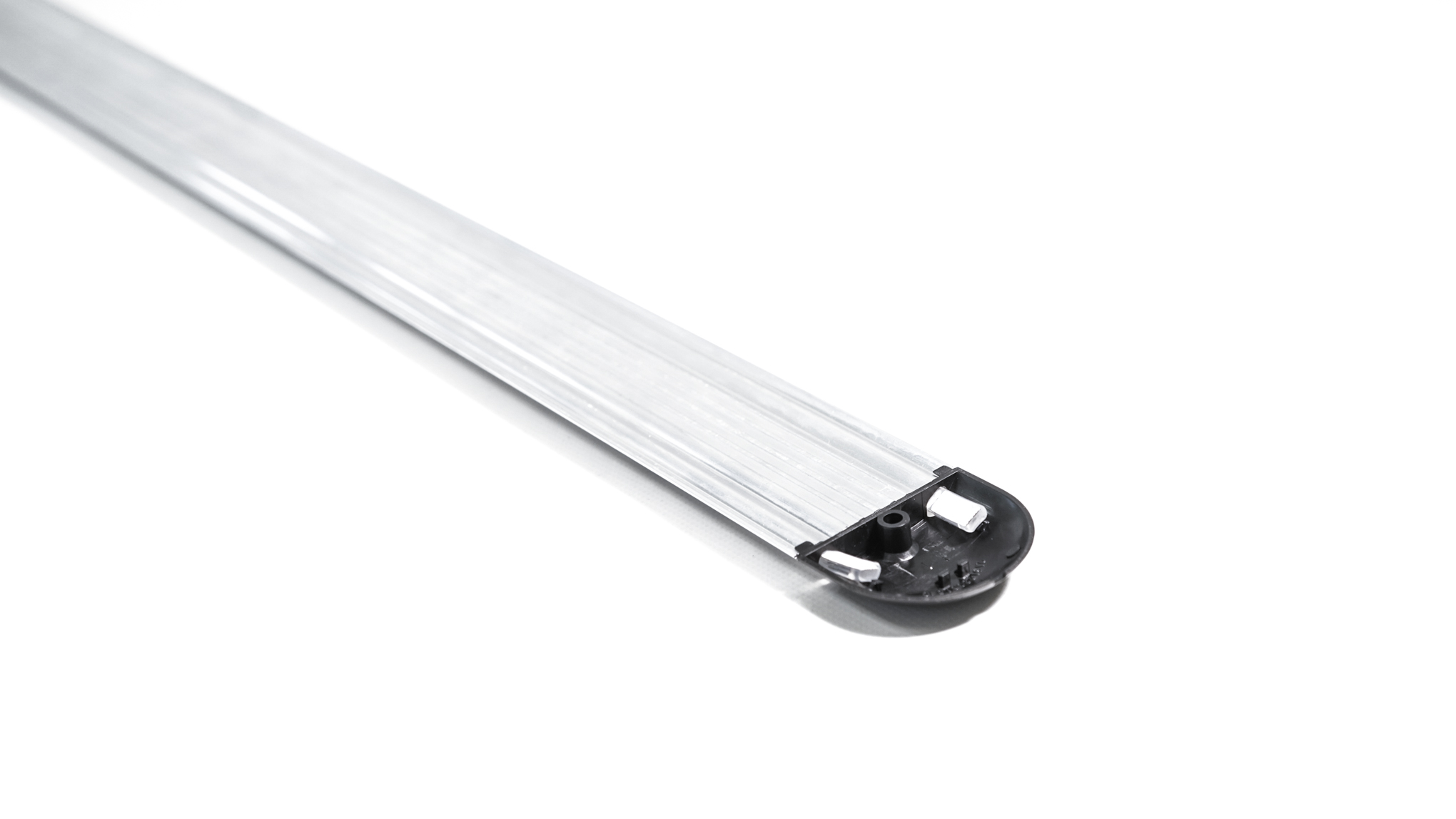

Electrical connection: The connection realised with a 2-core cable with 2x 0.5 mm² cross section. If necessary, the caps can also be screwed on. To do this, drill out the caps from the back using a 4.3 mm drill bit. Note: The maximum voltage of the LED strip is 12.4V. If the vehicle’s electrical system is not limited to this voltage, a voltage limiter must be used to prevent the LED rail from overheating.
| Lashing capacity (LC): | at least 400 daN |
| Article: | LED light |
| Shape (track): | round / semi-circular |
| Width: | 50 mm |
| Height: | 11.5 mm |
- Materialstärke: 3,5 mm
- Gewicht ca. 560 g
Warning against cuts
Warnings against hand injuries
Warning against electrical voltage
Warning: Safeguard before use!
Warning: Beware of load limit!
