ALU locking rod
Prices incl. VAT plus shipping costs
Delivery time 37 Workdays
- Order number: 18081920SL

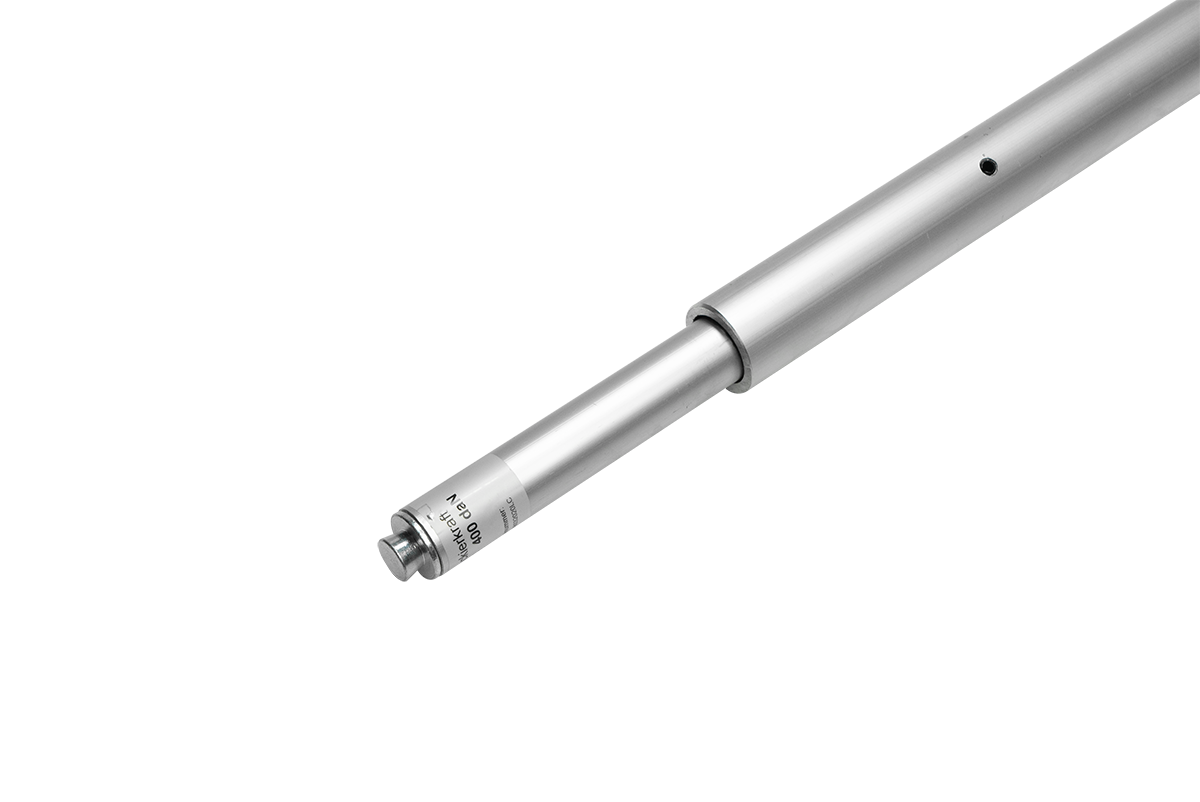

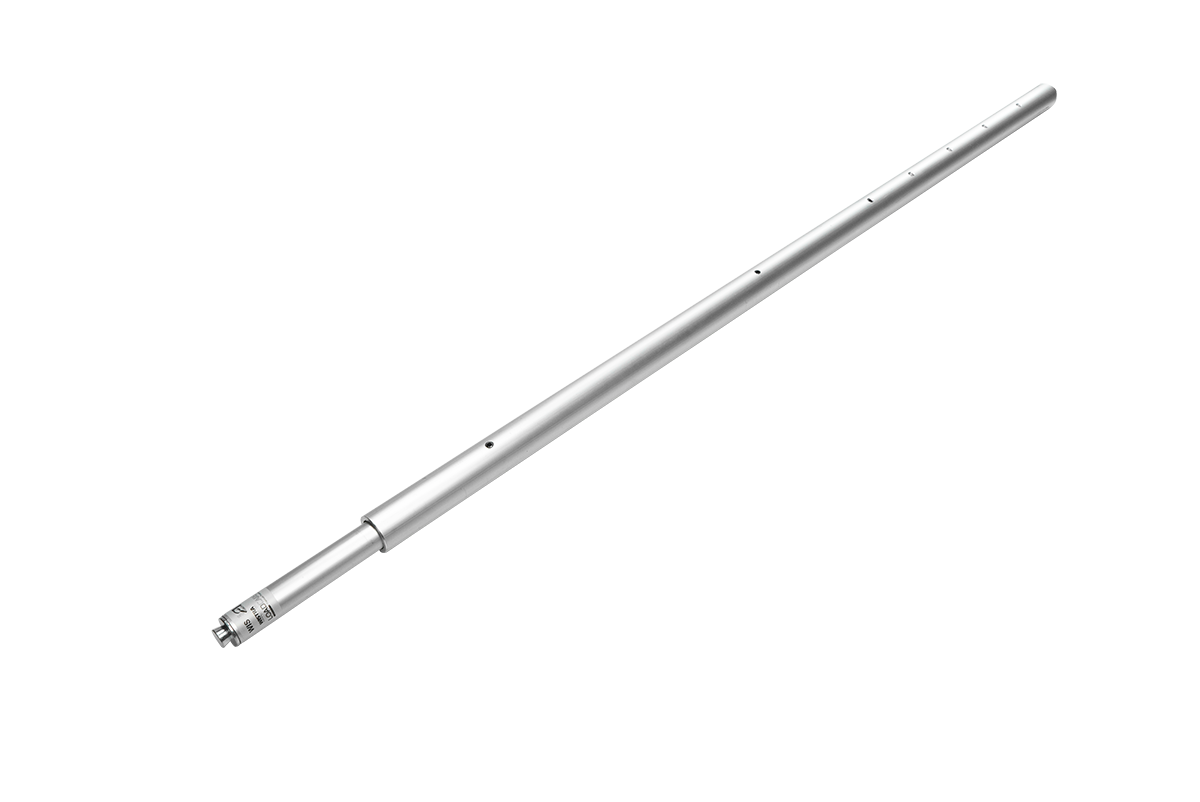

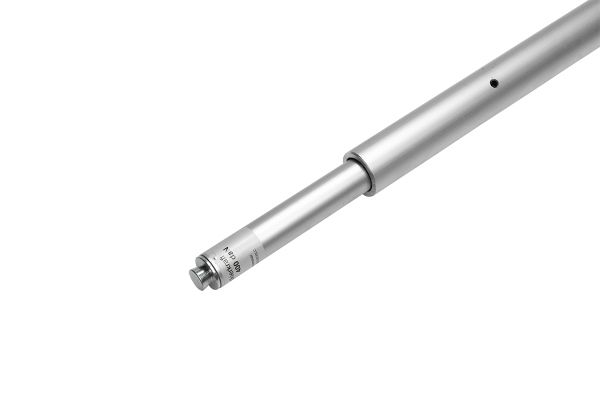

This aluminium round shoring beam is suitable for any airline track with a hole diameter of 20 mm. Horizontal shoring beams are primarily used for rear cargo securing. On one side the shoring beam is adjustable from 1670–2130 mm and on the other it has a spring insert.
How do I apply the shoring beam?
Take the side of the shoring beam with the spring insert, insert it into the airline track and press it together. Then guide the other end into the opposite track and relieve the pressure. Now check the shoring beam for a tight fit and you’re done!
How can I change the range of the shoring beam?
To change the range, you must drive out the cotter pin, ideally with a pin punch, an old matching nut or another suitable tool. After you have removed the cotter pin, you can adjust the inner tube and set it to the required vehicle inner width. Then you have to hammer the cotter pin back in.
By viewing the video, you agree that your data will be transmitted to YouTube and that you have read the privacy policy.
| Lashing capacity (LC): | 400 daN |
| Article: | Airline track |
Warnings against hand injuries
Warning: Safeguard before use!
Warning: Beware of load limit!
