Set 4x airline tracks rectangular + end caps + fittings + adhesive

Preview: Airline track starter set – 23-part Slim – rectangular

Airline track starter set – 23-part Slim – rectangular

54.90 € *

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Please note: A one-off bulky goods surcharge of €7.80 applies for this product – no matter how many you order, even if you order other overlength products.

54.90 €

Netto: 46.13 €

Order number: 5325-S10

Perfect for recessing into the floor of your vehicle Fastening variant screws: e.g. with an... more

Close menu

Perfect for recessing into the floor of your vehicle
Fastening variant screws: e.g. with an M6 countersunk screw in every third hole to a base that is as stable as possible.

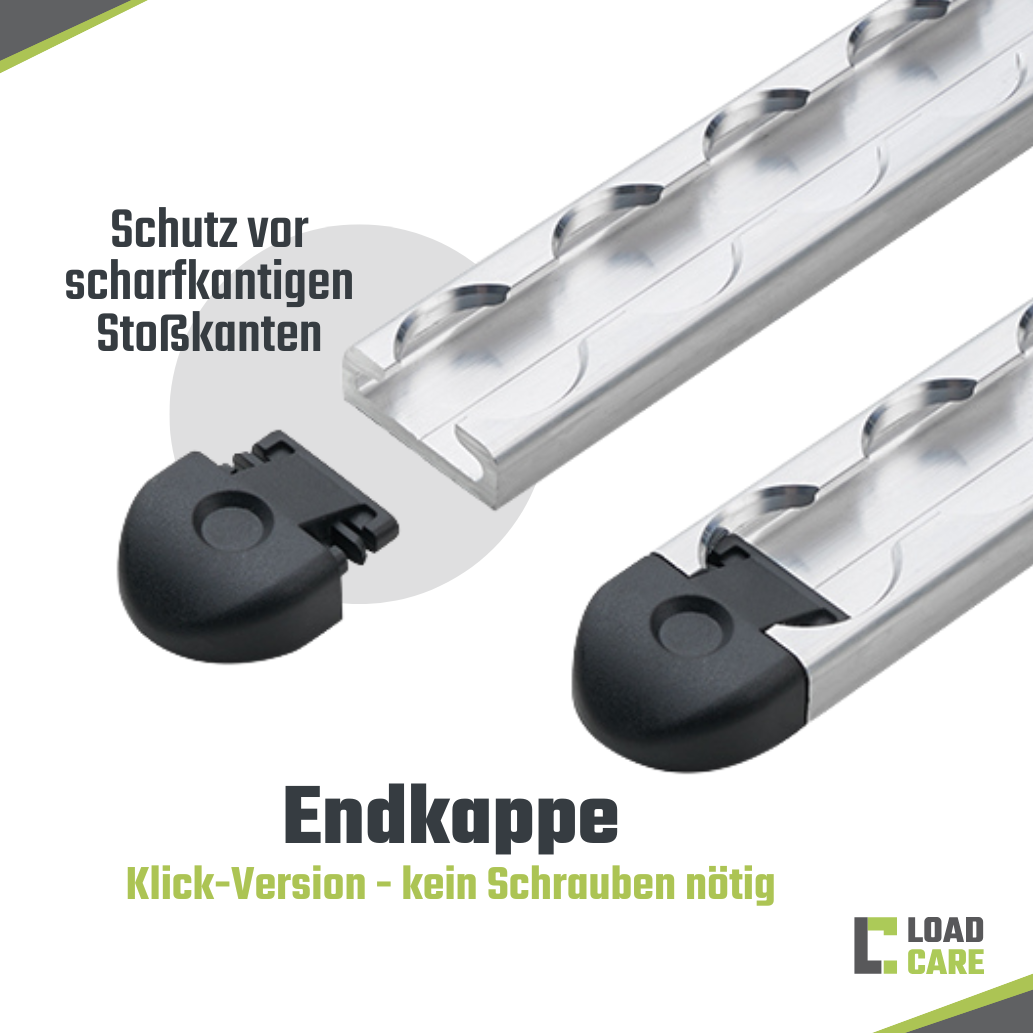

The end caps included in the package can completely transform the appearance of your transporter.
You simply push the protective edge at the ends of the track into the profile and countersink it with a matching countersunk screw.
The advantage of this product is that annoying sharp butt edges disappear so that your load is not damaged when the tracks are set up.
The included fitting primarily serves to enable a standard lashing strap to be used in combination with the airline track
Intelligent design with spring mechanism for locking in an airline track
The straight bracket is optimal in combination with a lashing strap with a claw hook because this allows it to be loaded precisely in the base of the hook

ADVANTAGES:

Better and easier handling
Ergonomic operation
Better feel
Easier insertion and loosening or sliding of the end fitting in the track
Better strap guidance thanks to triangle hooks (see image)
Protection and longevity of the mechanics (spring core) thanks to rubber sleeve
Firmer hold in the airline track/lashing track
Less abrasion on the track because of plastic body

Take a moment to have another look at our shop. Order additional accessories such as end caps, shoring beams, lashing straps, fittings, cargo securing nets and much more.

We are also happy to advise you over the phone and help you find the perfect cargo securing equipment for your needs

Technical data

Height:	9.5 mm
	6 kg
	6 kg

Further Information

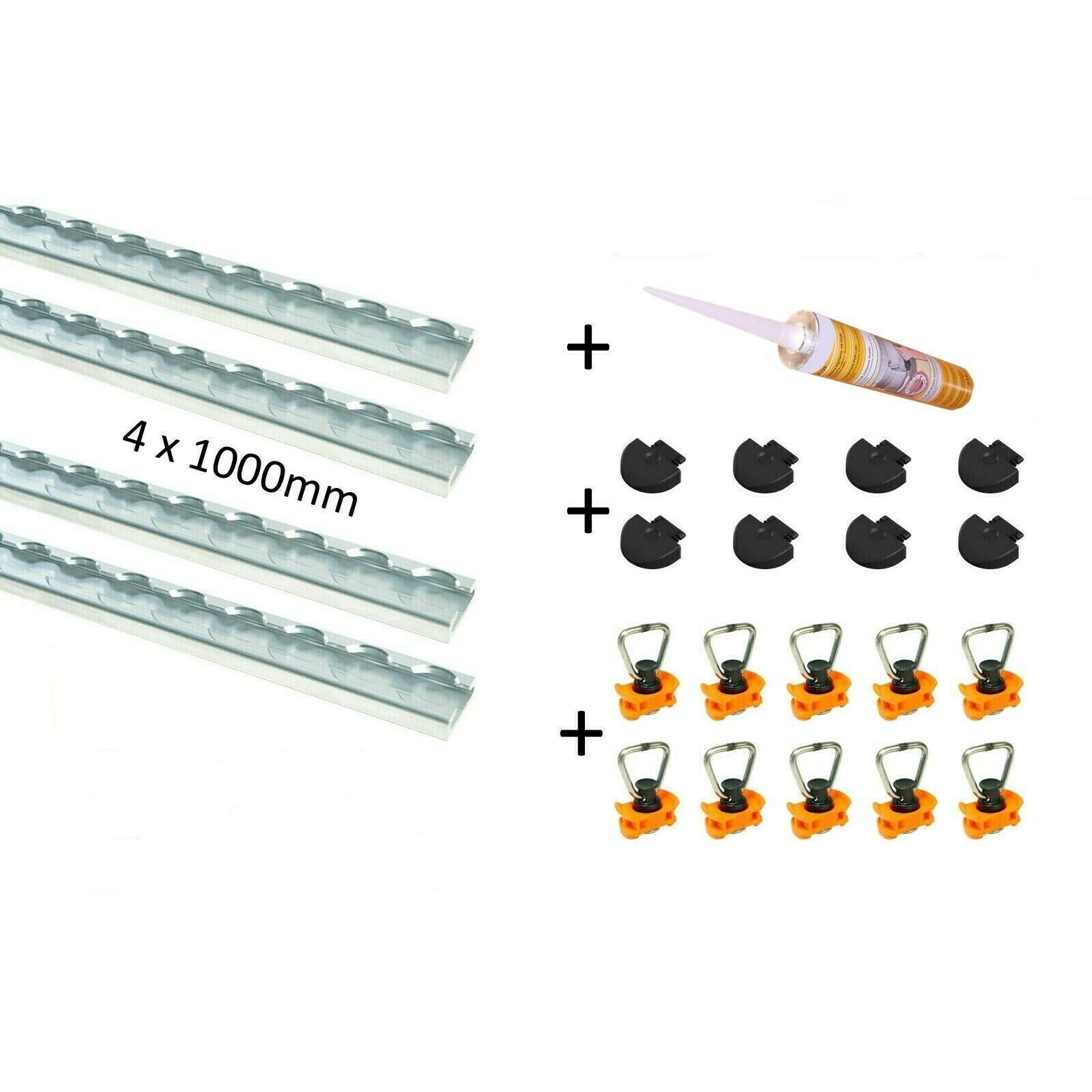

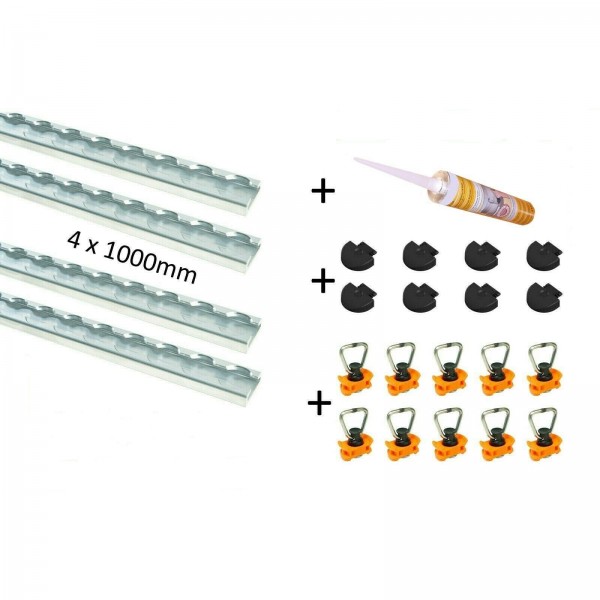

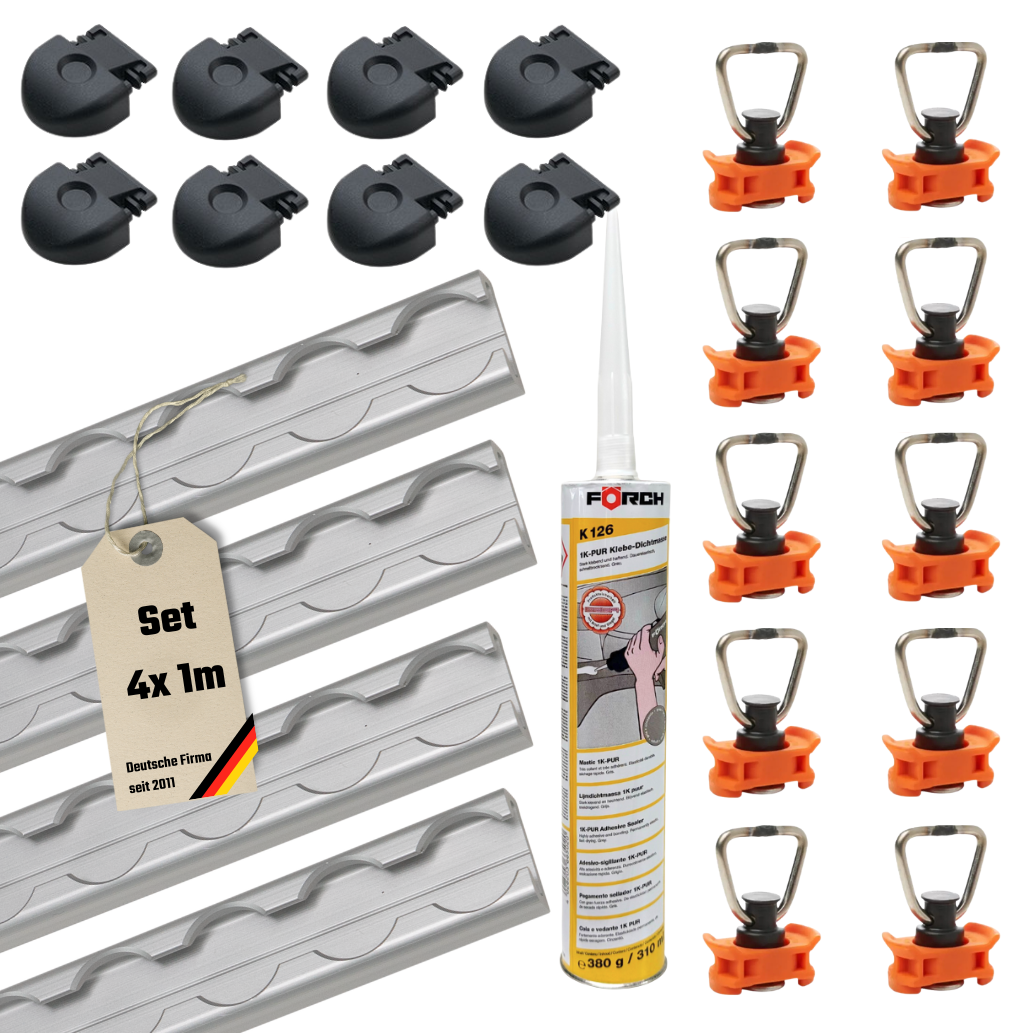

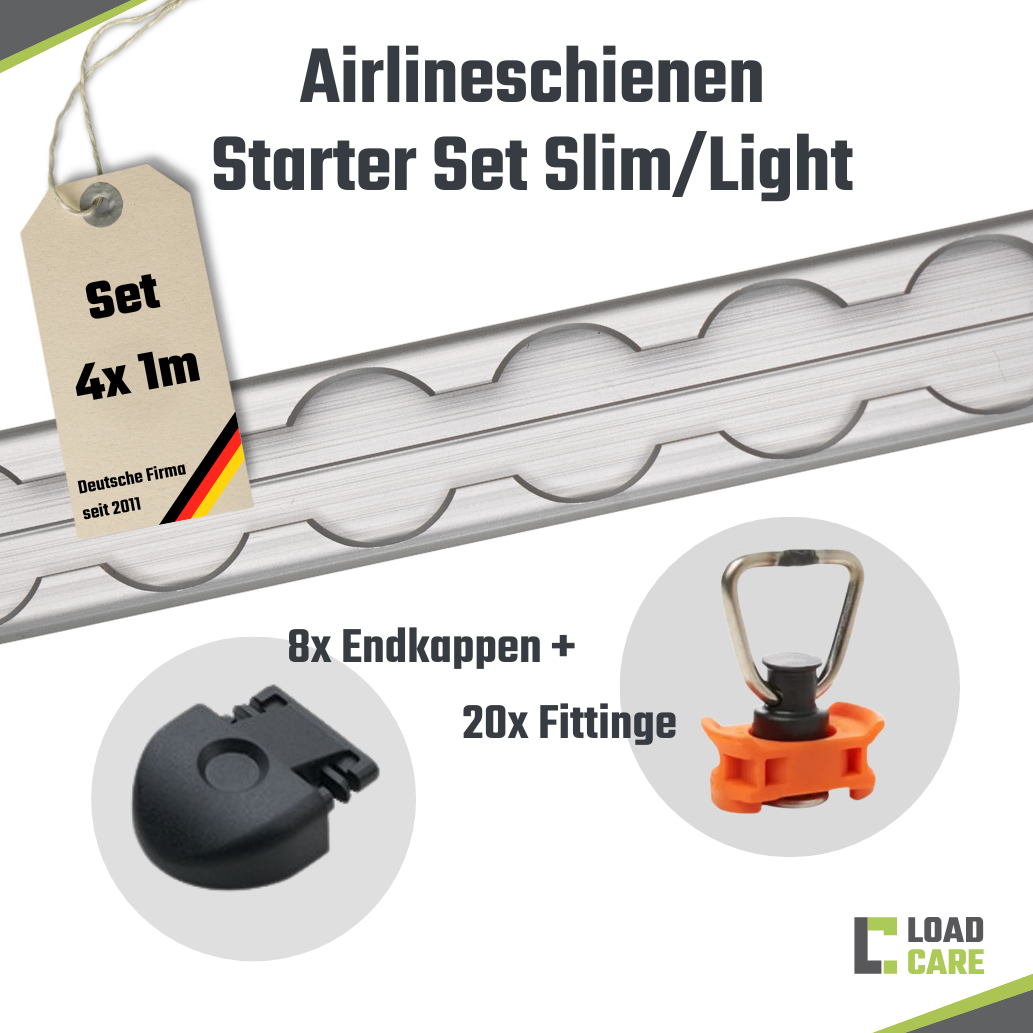

Set consisting of:

4x airline tracks / lashing tracks rectangular 1 m:

Material: Aluminium bare
LC strength: at least 400 daN (kg)
Hole: 20 mm diameter
Hole pattern: 25 mm
Height: 9.5 mm
Width: 25 mm
Material thickness: 2 mm

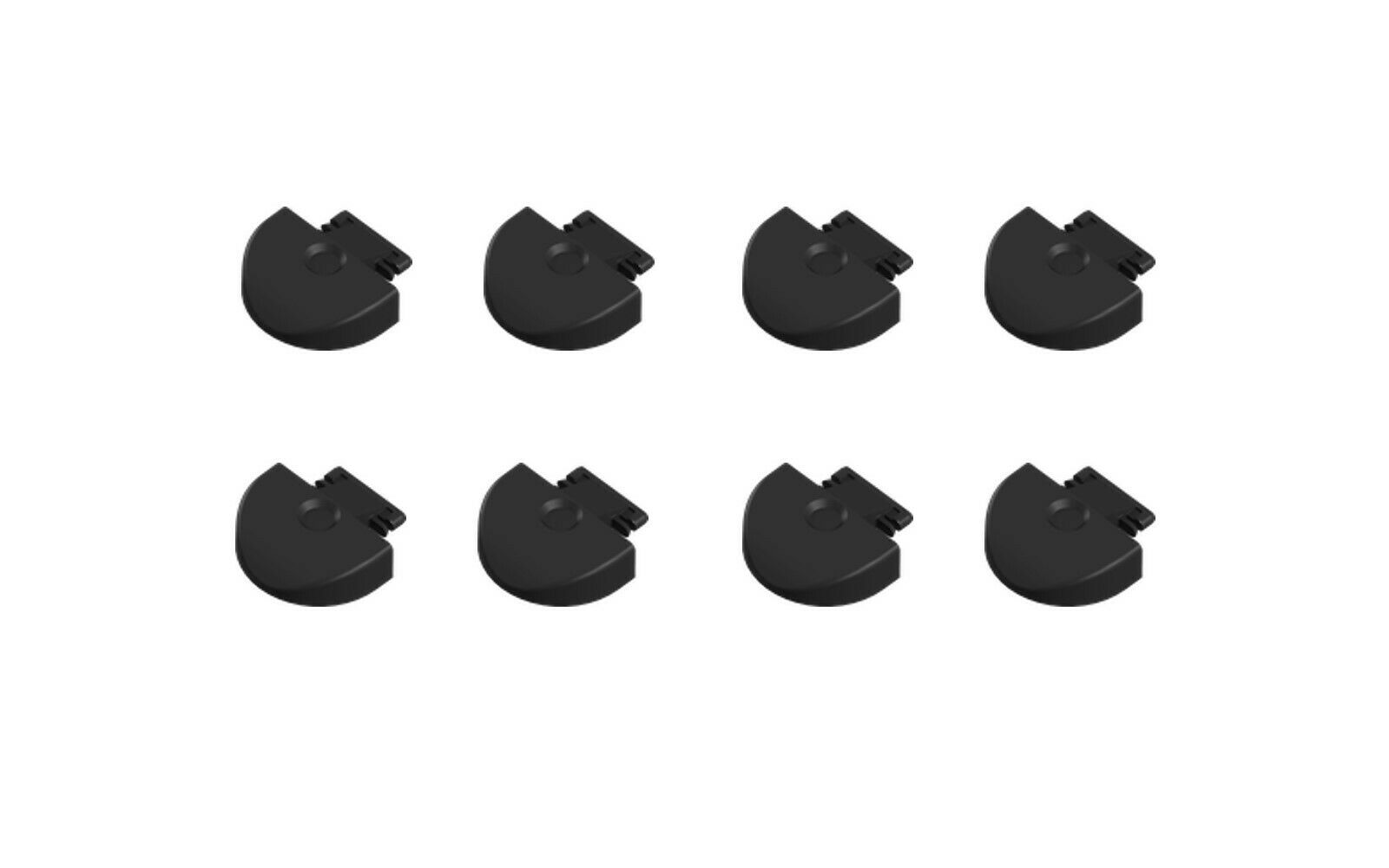

8x end caps for click mounting:

Protective cap for airline track rectangular/flat
Material: Plastic
Colour: black
Click version without screws

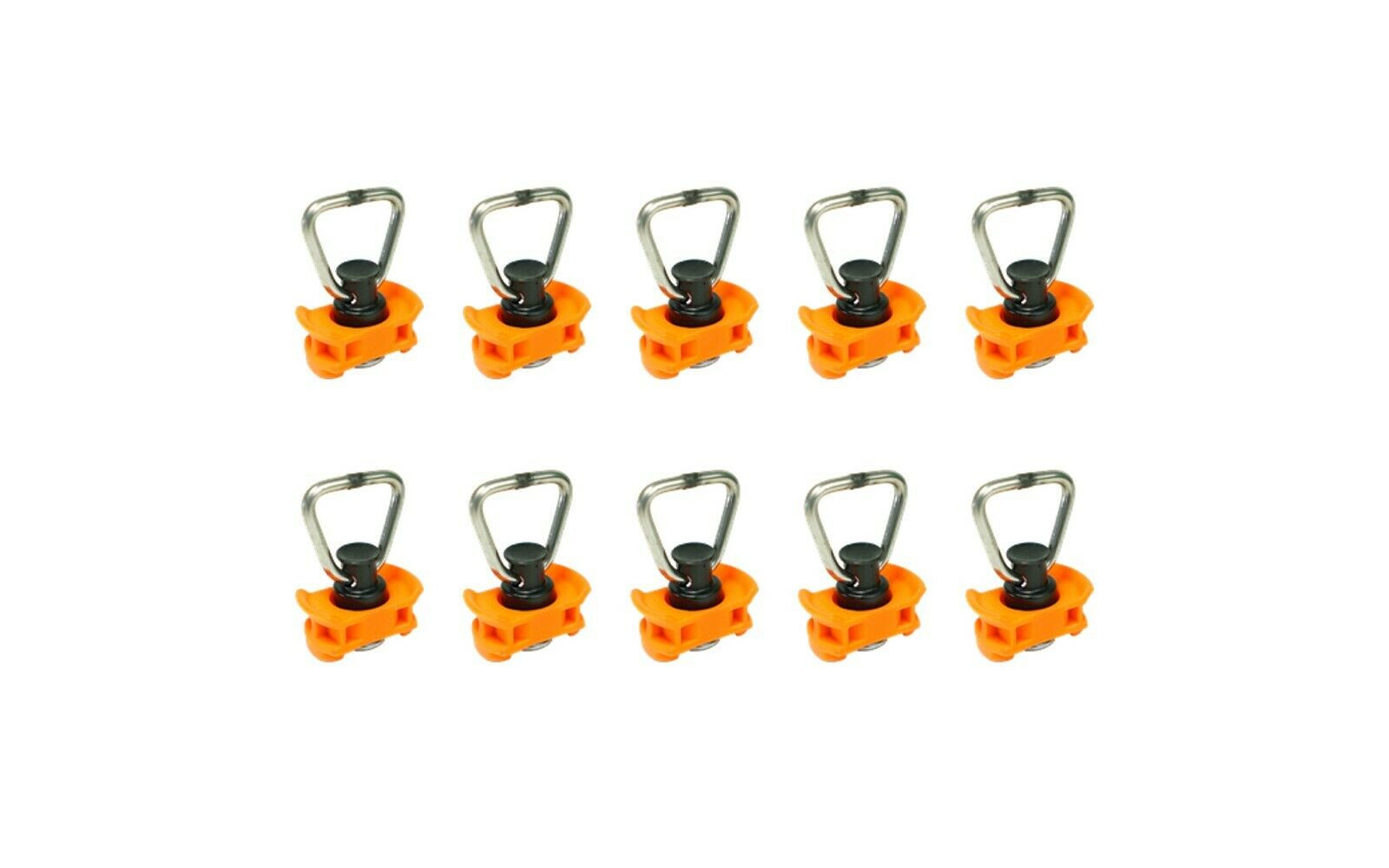

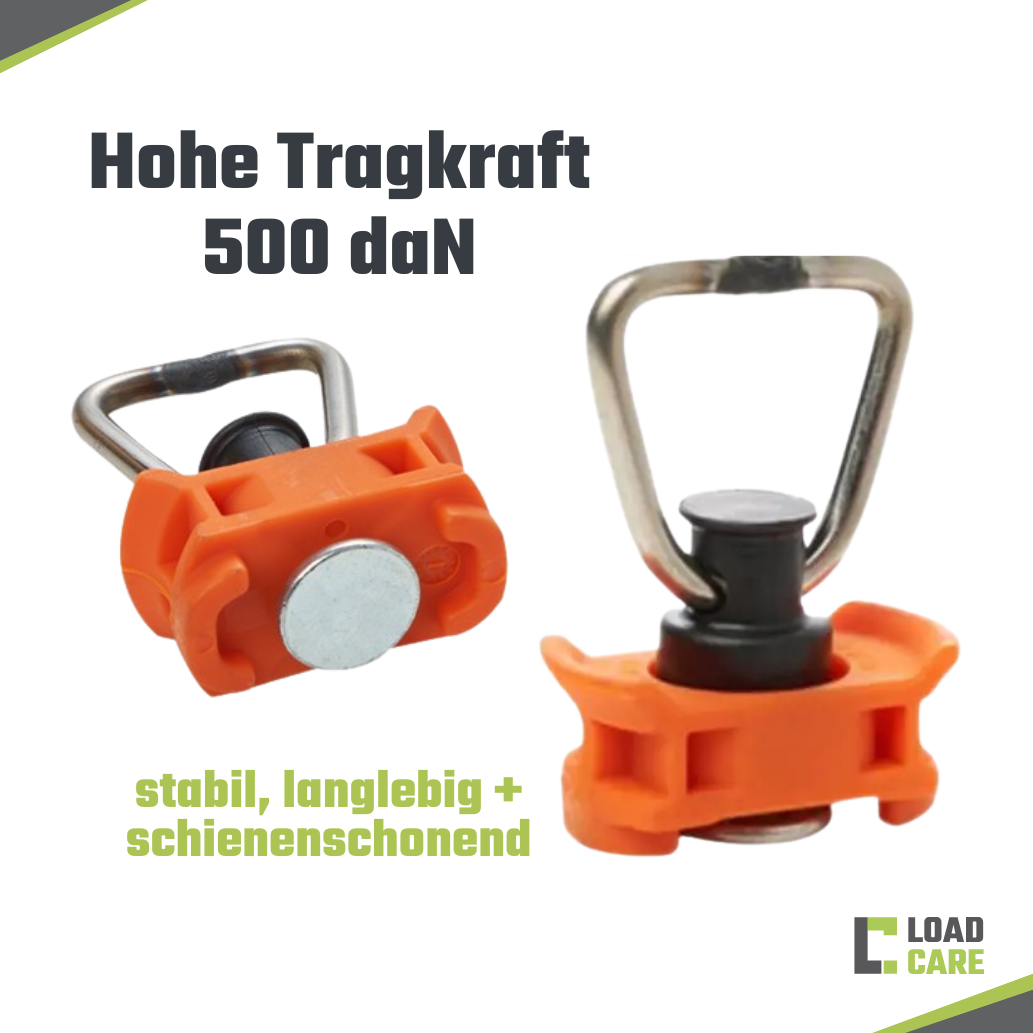

10x single fittings / end fittings orange:

Single end fitting (fitting, flying eyelet) for airline track
Material: Steel/plastic
Maximum load capacity LC: 500 daN
Weight: approx. 100 g

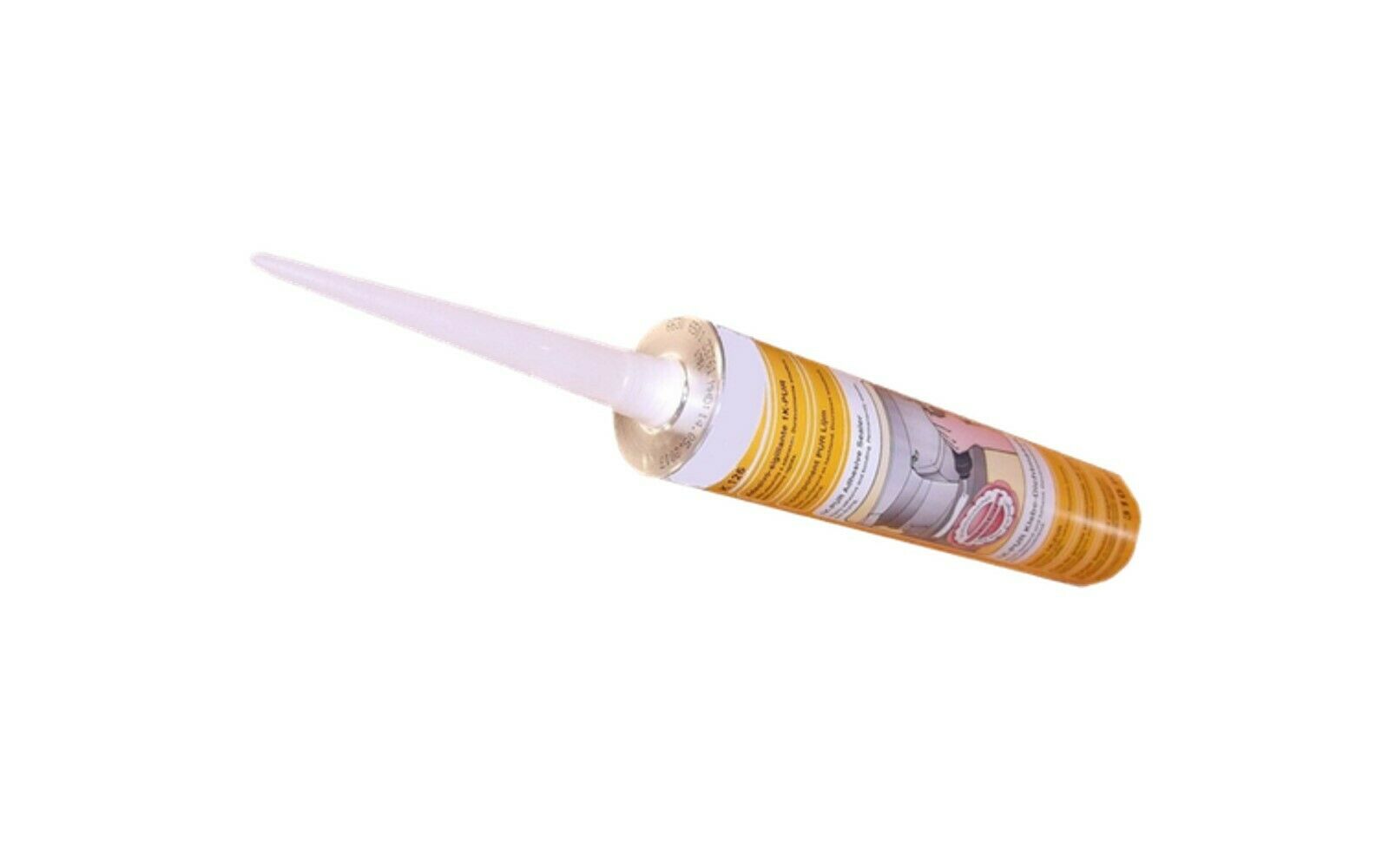

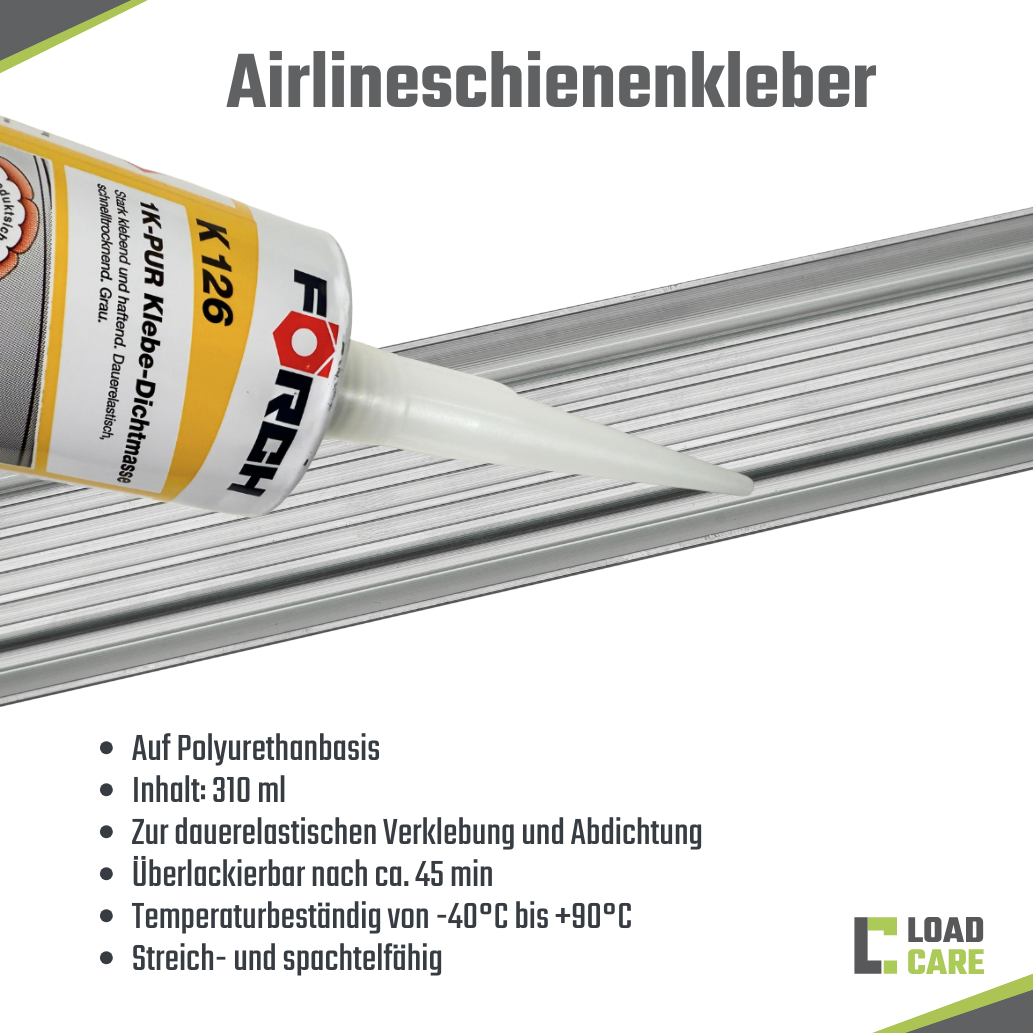

1x airline track adhesive

Polyurethane-based
Content: 310 ml
For permanently elastic bonding and sealing
Can be painted over after approx. 45 min
Temperature resistant from -40°C to +90°C
Suitable for paintbrush or trowel application
Compliant with the provisions of the German Food, Commodities and Feed Code (LFGB)
Observe operating instructions before use!
