PalletStop
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 0040000

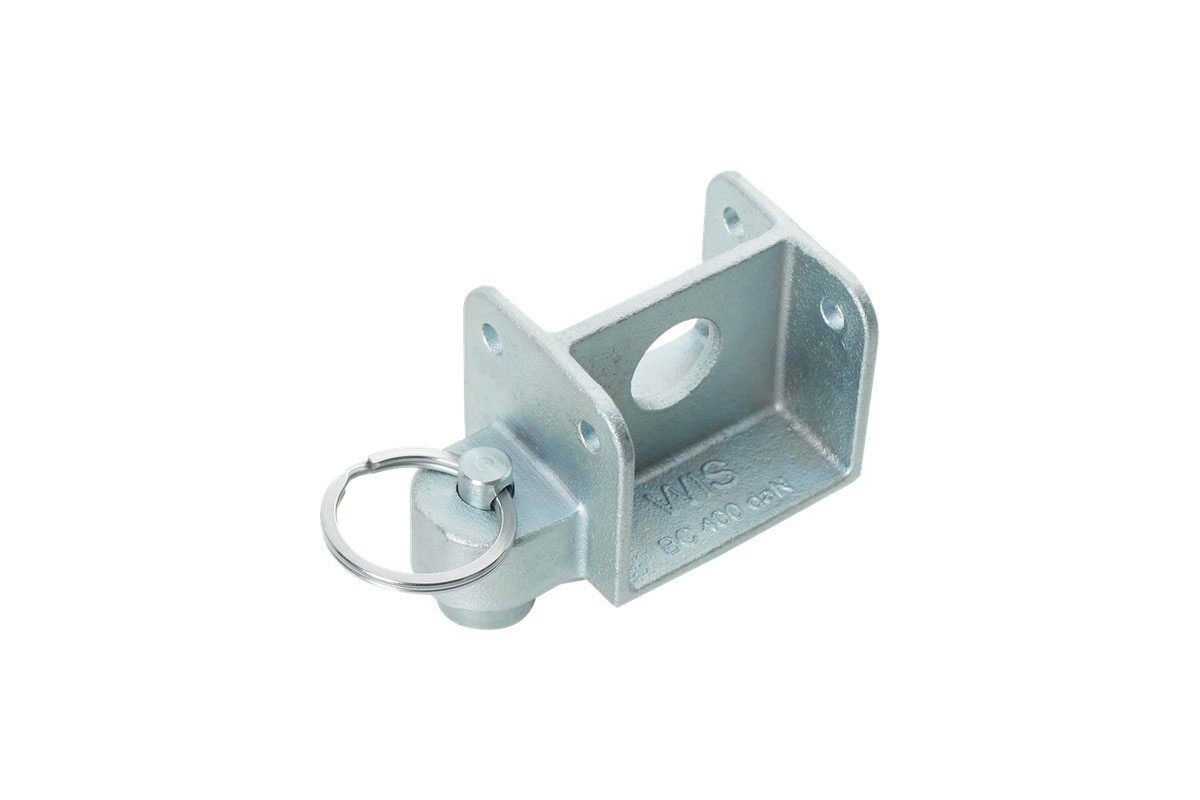

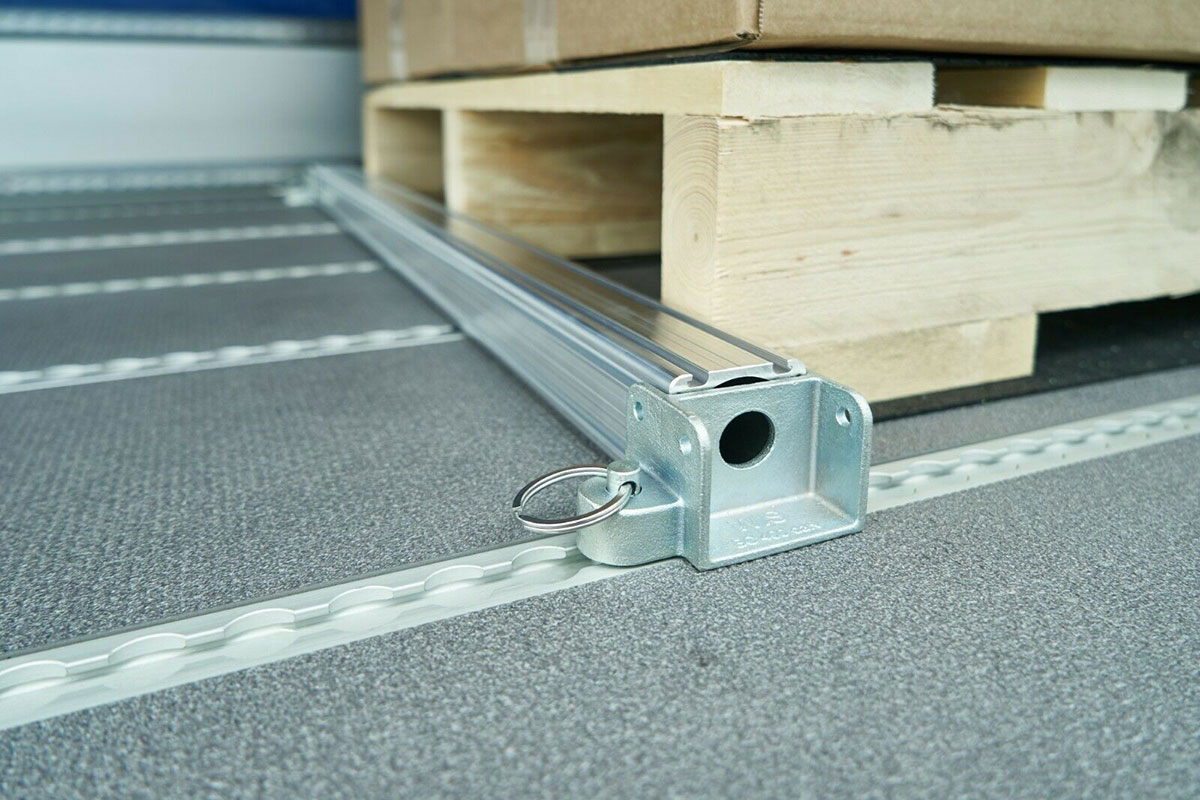

This PalletStop can be used to secure pallets against sliding in the load compartment. The fitting can be used directly as a blockade with integrated airline tracks in the vehicle floor. An aluminium profile of 50 x 50 mm is suitable as a retaining profile between two fittings.
It is also possible to use a shoring beam that has a 19 mm pin at the ends. As the item has a symmetrical design, there is no special fitting for the left or the right side.

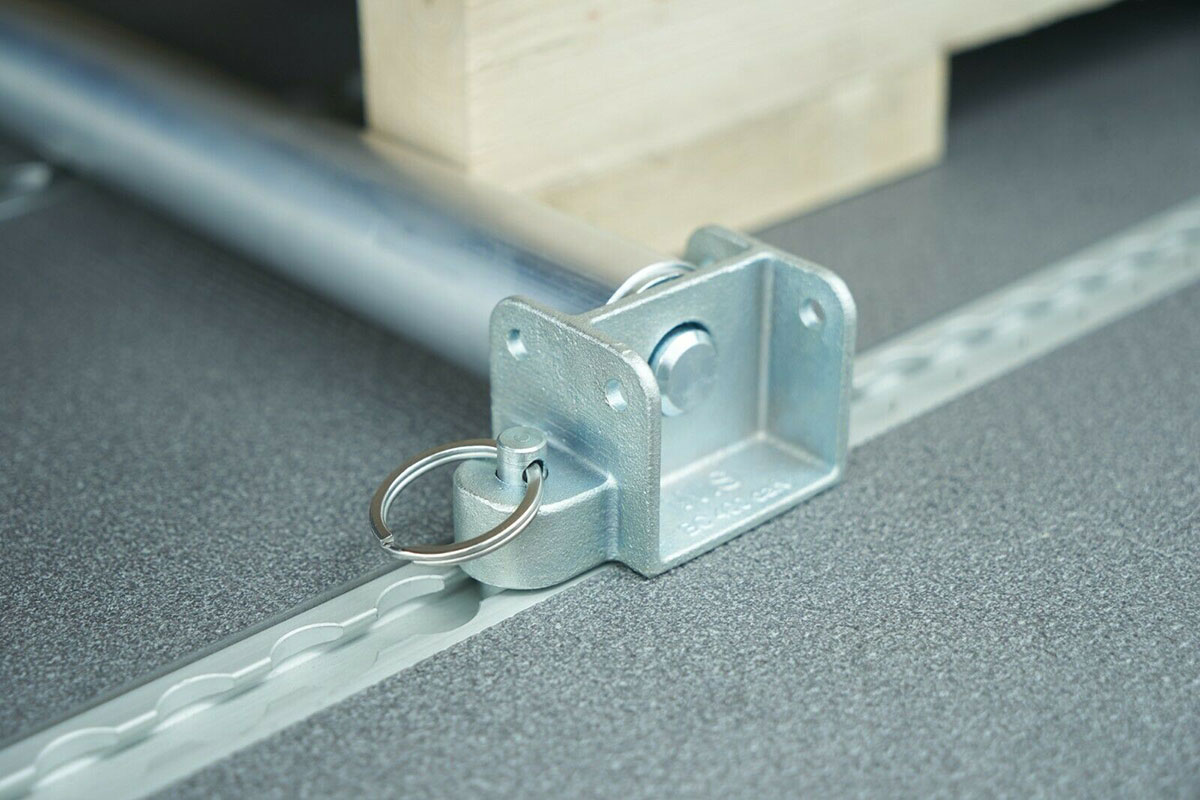

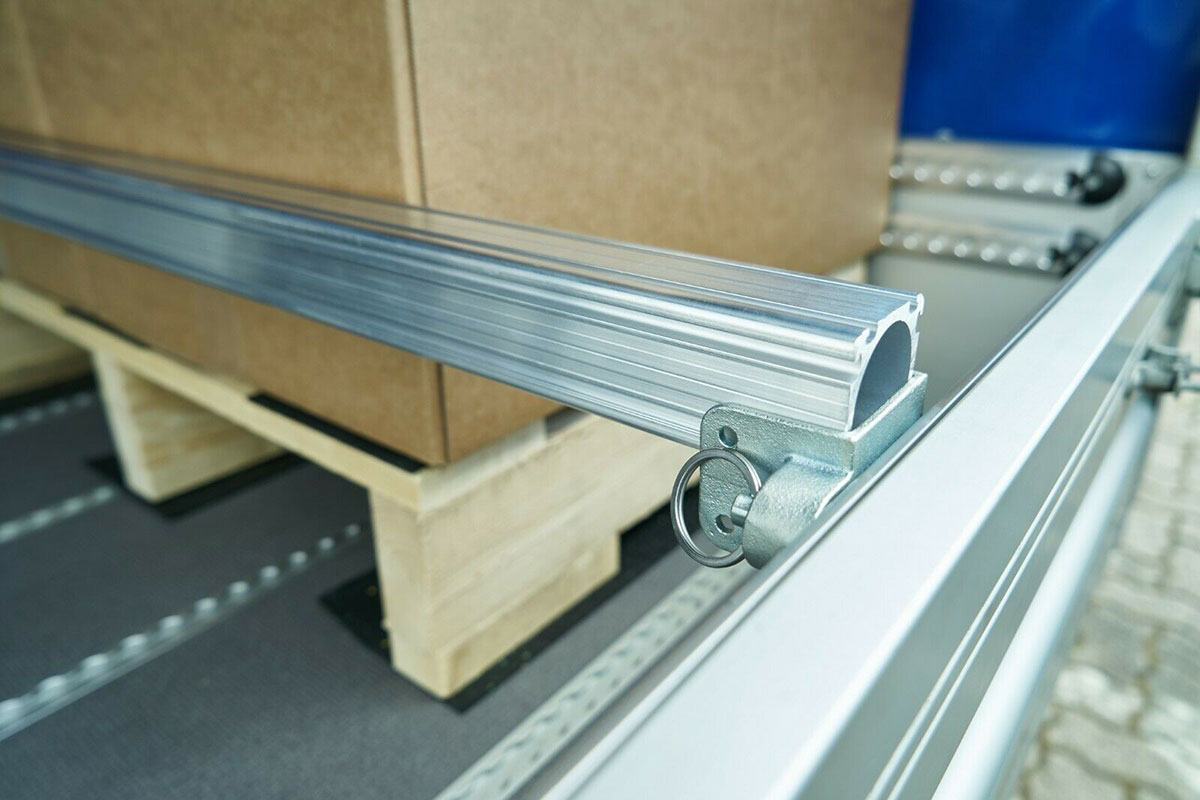

In one of the application pictures, you can see the article being used tilted by 90 degrees. For this application we recommend securing with a pin / split pin of the aluminium profile.
The aluminium profile and the shoring beam on the application pictures are not included in the scope of delivery!

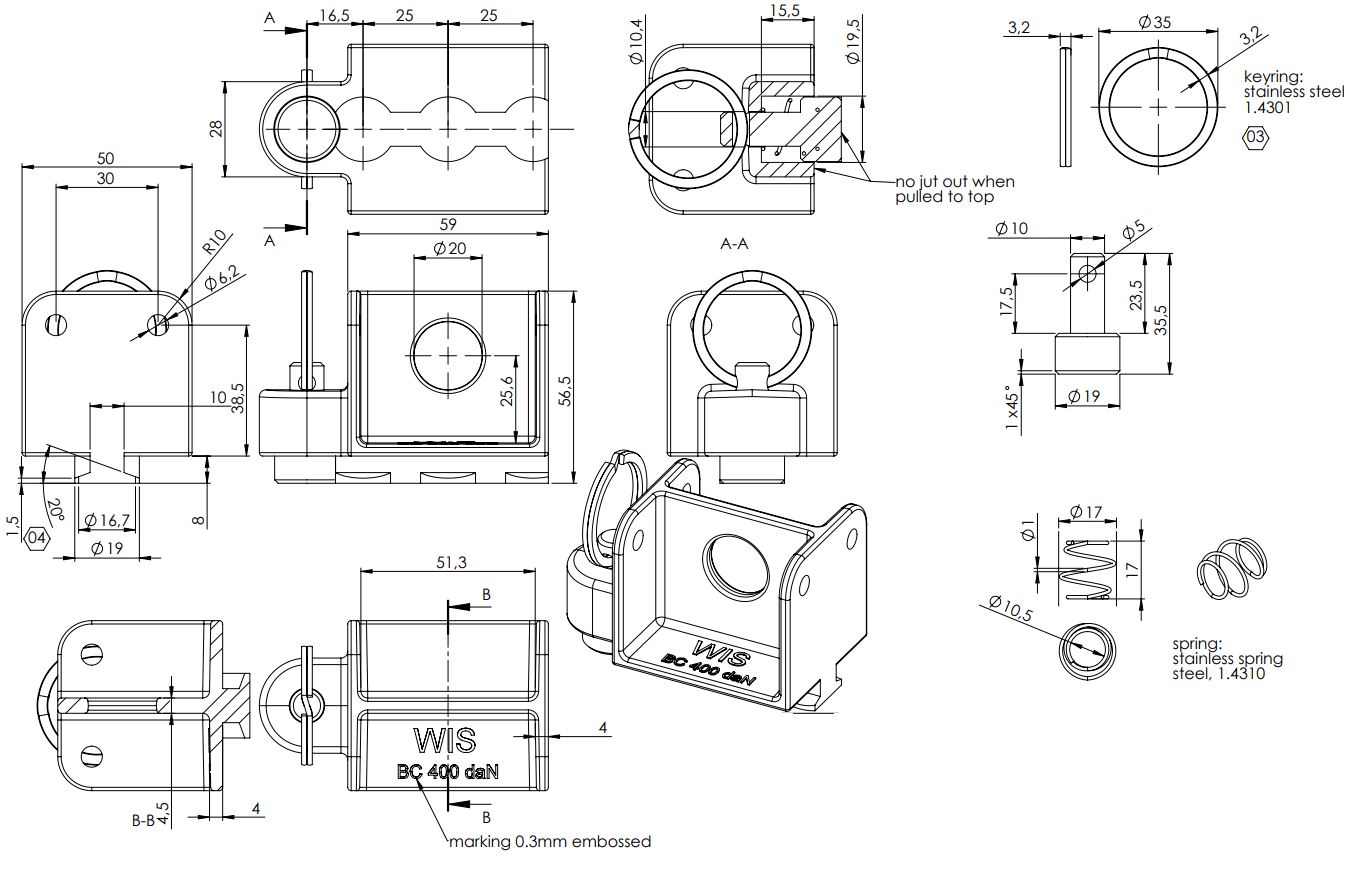

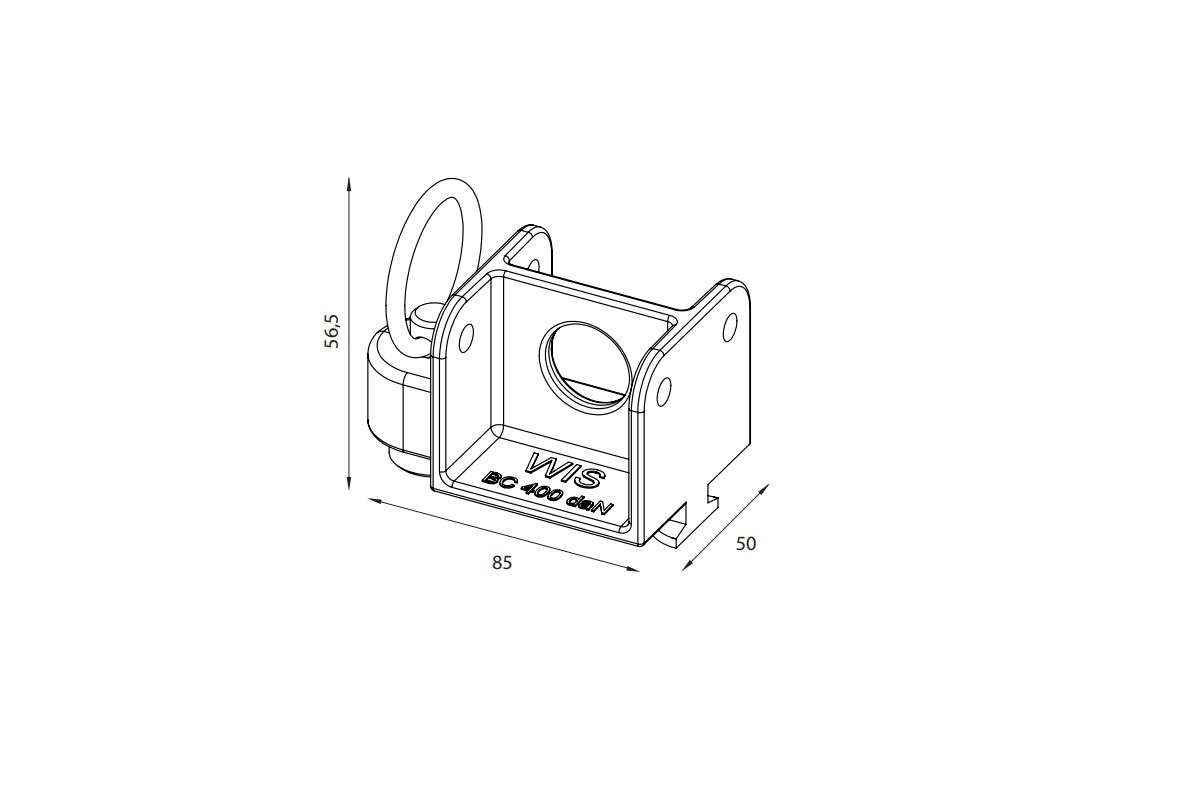

| Width: | 85 mm |
| Height: | 56.5 mm |
| Depth: | 50 mm |
| Breaking load: | 400 daN |
- For profiles up to 50 mm thick
- Weight: 410 g
- Height above vehicle floor: 49 mm
- Centre hole: ø 20 mm for ø 19 mm pin
- 4x hole 6 mm for dowel pins
Warnings against hand injuries
Warning: Safeguard before use!
Warning: Beware of load limit!
