Airline track starter set – 22-part rectangular
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 5325-S5
This track is the classic among the airline tracks. The rounded design protects you and the goods from sharp and pointed impact edges. In addition, there is a small groove in the track to help you find the centre of the lashing track when drilling. You save a lot of time as punch-marking is not needed. Due to the anodised material, there is no need to de-oil the rail.
You have the option of placing the rail on the ceiling, on the wall or on the floor. Fastening variant screws: e.g. in each hole with a countersunk screw M6.
What is it that makes airline tracks so appealing? Of course! Low weight means more payload or the narrow hole pattern. This gives them the perfect form fit in combination with shoring beams, because they secure enormously close to the goods.
Order now and save on shipping costs:
Take a moment to have another look at our shop. Order additional accessories such as lashing tracks, shoring beams, clamping boards, decking beams, lashing straps, fittings, cargo securing nets and much more.
We are also happy to advise you over the phone and help you find the perfect cargo securing equipment for your needs.
| Width: | 34 mm |
| Height: | 9.6 mm |

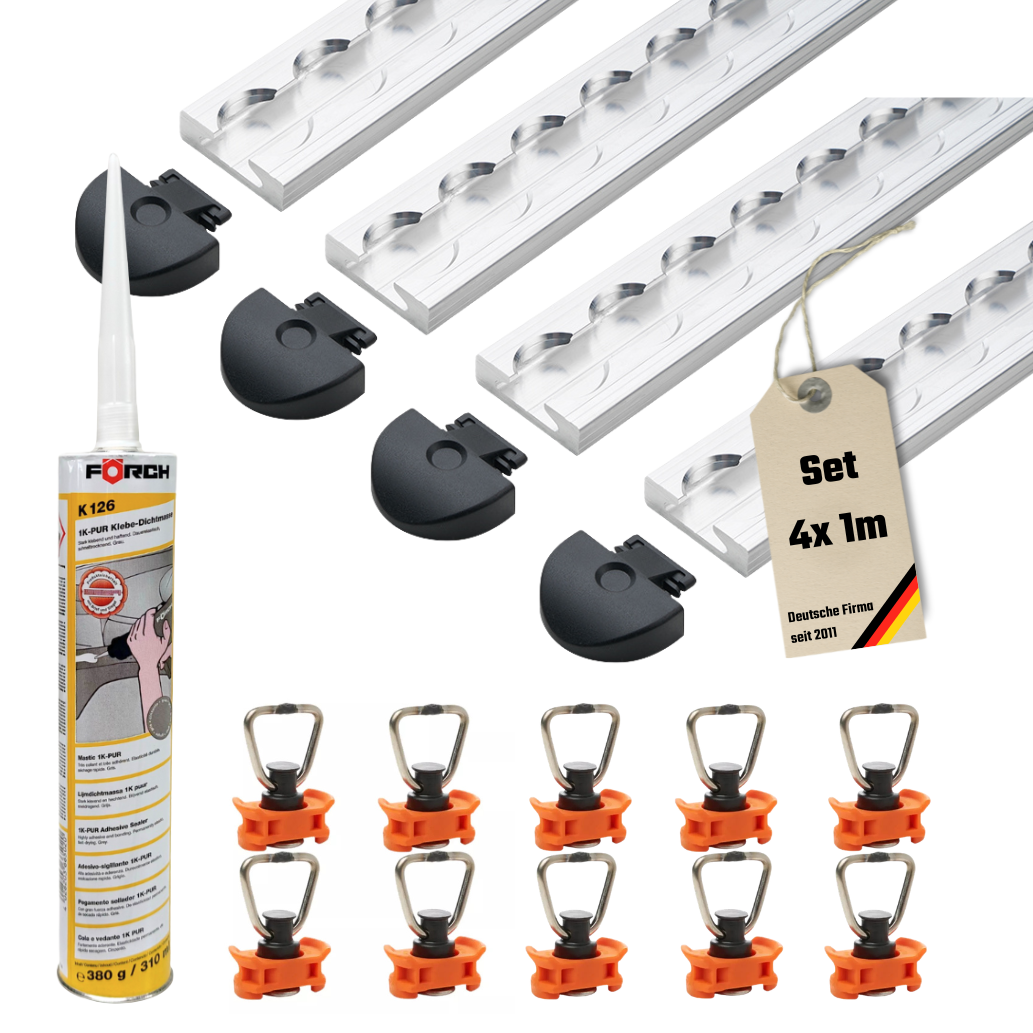

Set consisting of:
4x airline tracks / lashing tracks rectangular 1 m
- Material: Aluminium bare
- LC strength: at least 400 daN (kg)
- Hole: 20 mm diameter
- Hole pattern: 25 mm
- Height: 9.6 mm
- Width: 34 mm
- Material thickness: 2 mm
8x end caps for click mounting
- Protective cap for airline track rectangular/flat
- Material: Plastic
- Colour: black
- Click version without screws

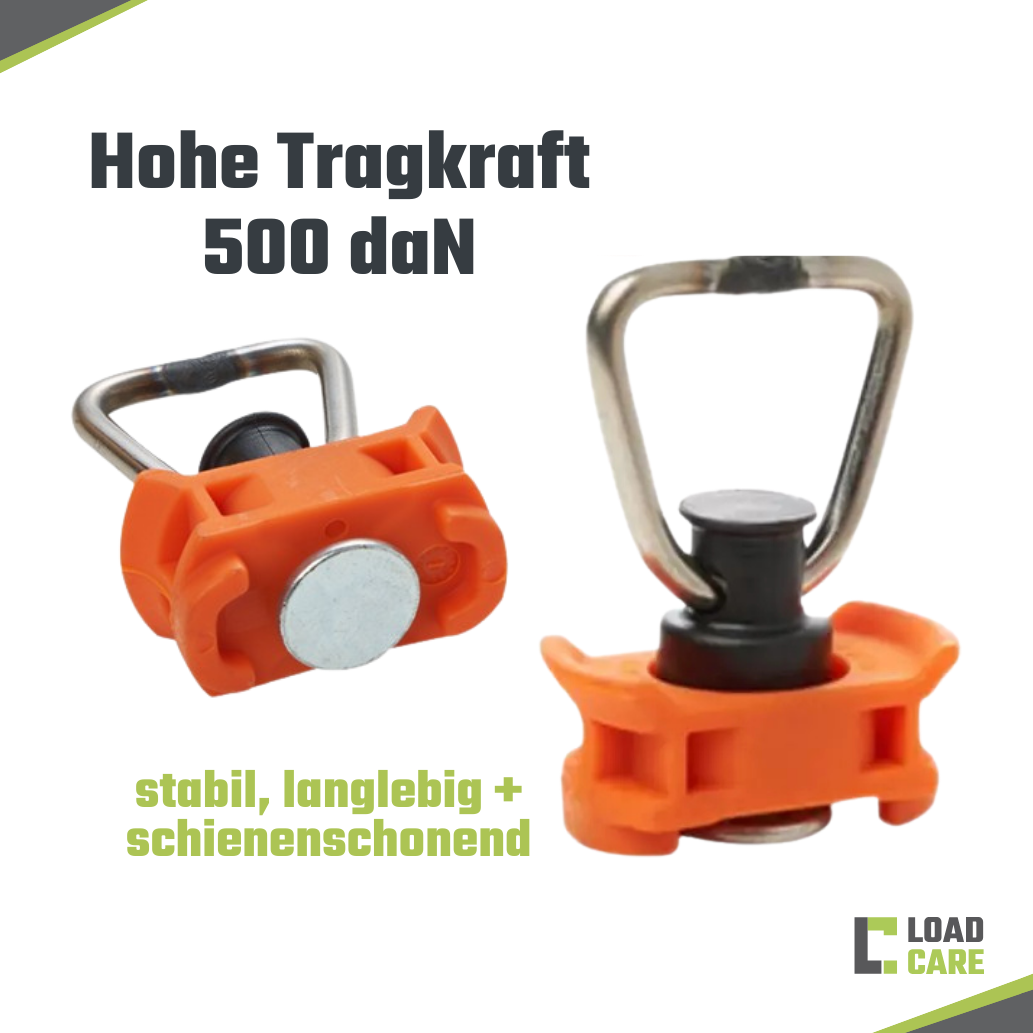

10x single fittings / end fittings orange
- Single end fitting (fitting, flying eyelet) for airline track
- Material: Steel/plastic
- Maximum load capacity LC: 500 daN
- Weight: approx. 100 g

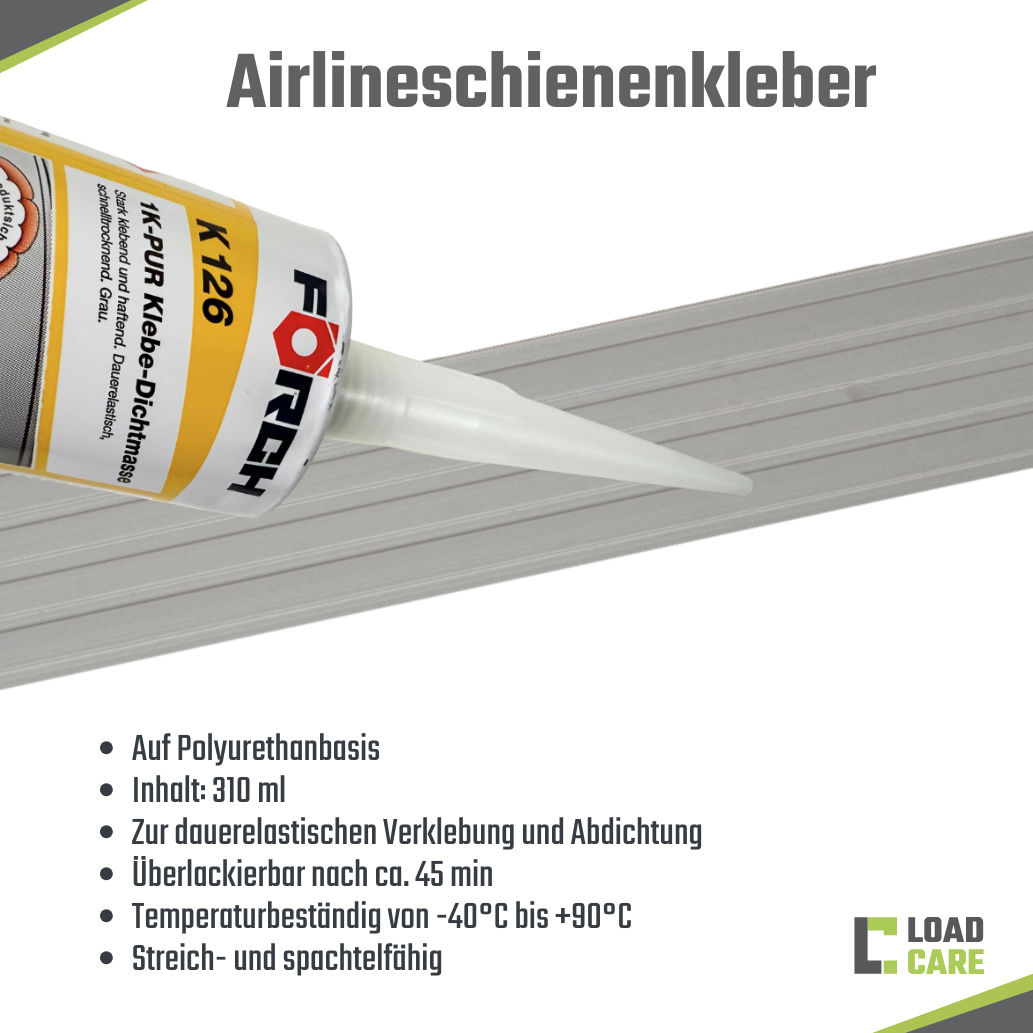

1 x Adhesive for airline tracks
Warning of crushing hazard
Warning against cuts
Warnings against hand injuries
Warning: Safeguard before use!
Warning: Beware of load limit!
