LadderStow ladder safety device
- Order number: RAS37
Haben Sie Ihr Fahrzeug bereits ausgewählt, entfällt dieser Step für Sie:
FahrzeugauswahlLadderStow ladder safety device

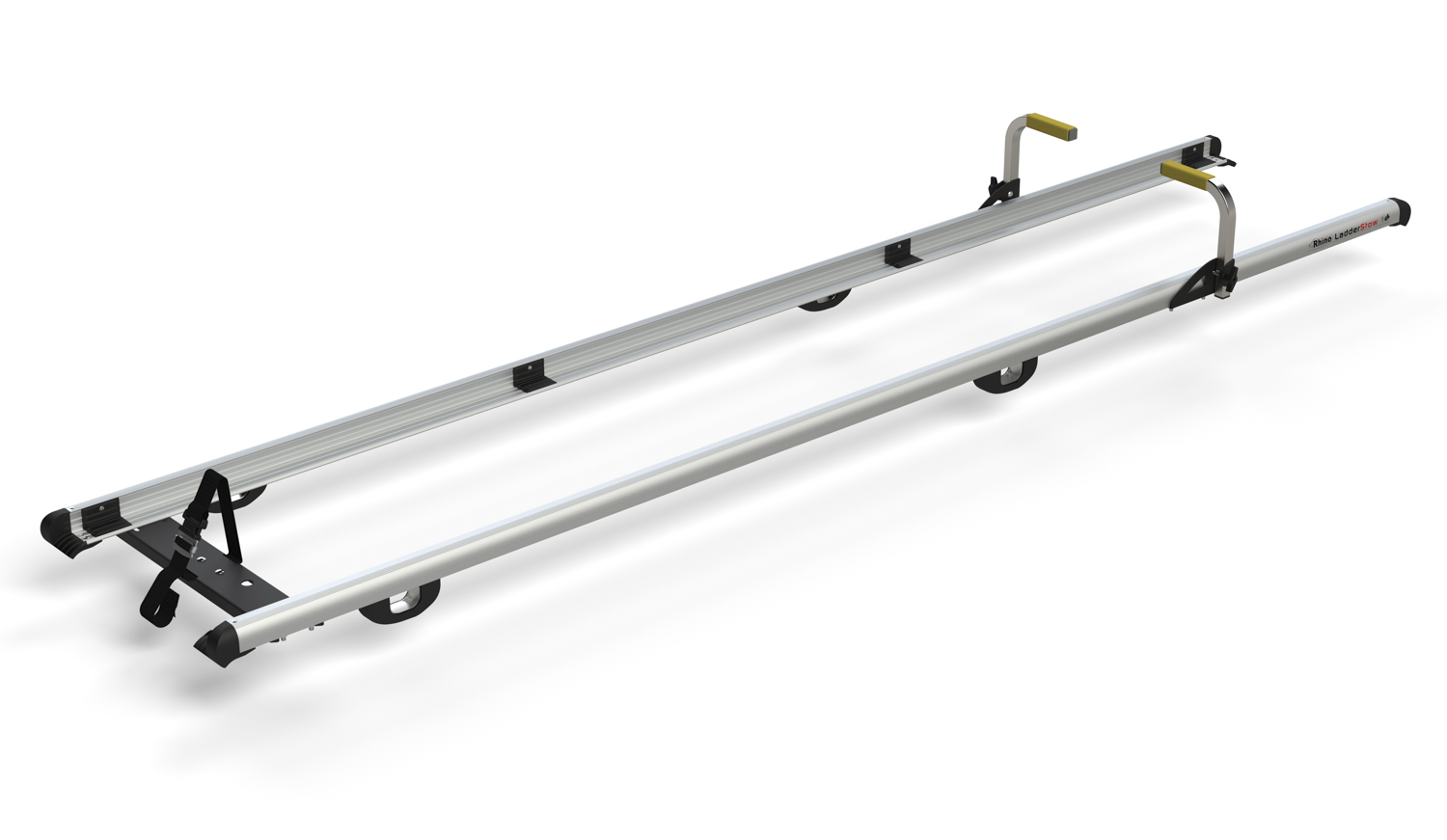

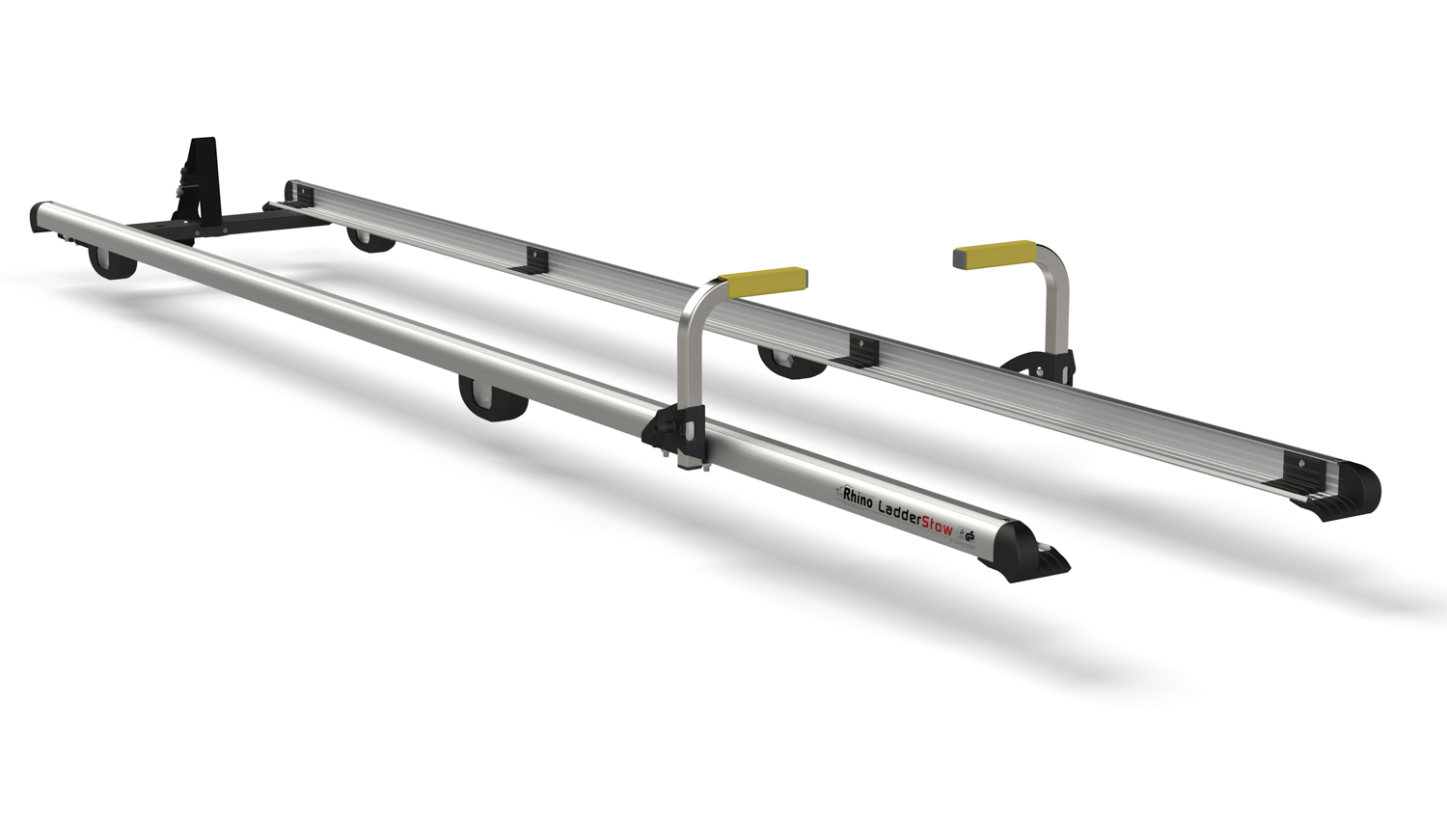

LadderStow® is the perfect system for attaching and transporting ladders on commercial vehicles with extra low roofs and fits all our products.
LadderStow® – key features
- Lightweight and aesthetically pleasing ladder bracket
- Ergonomic and efficient loading and unloading of ladders
- Specially designed for use on a commercial vehicle with a low roof height
- Low-friction glides for smooth loading and unloading of ladders
- Height and width adjustable according to ladder type and size
- Depth 120–220 mm, width 350–500 mm
- Accommodates ladder systems with up to three sections with a total height of 220 mm

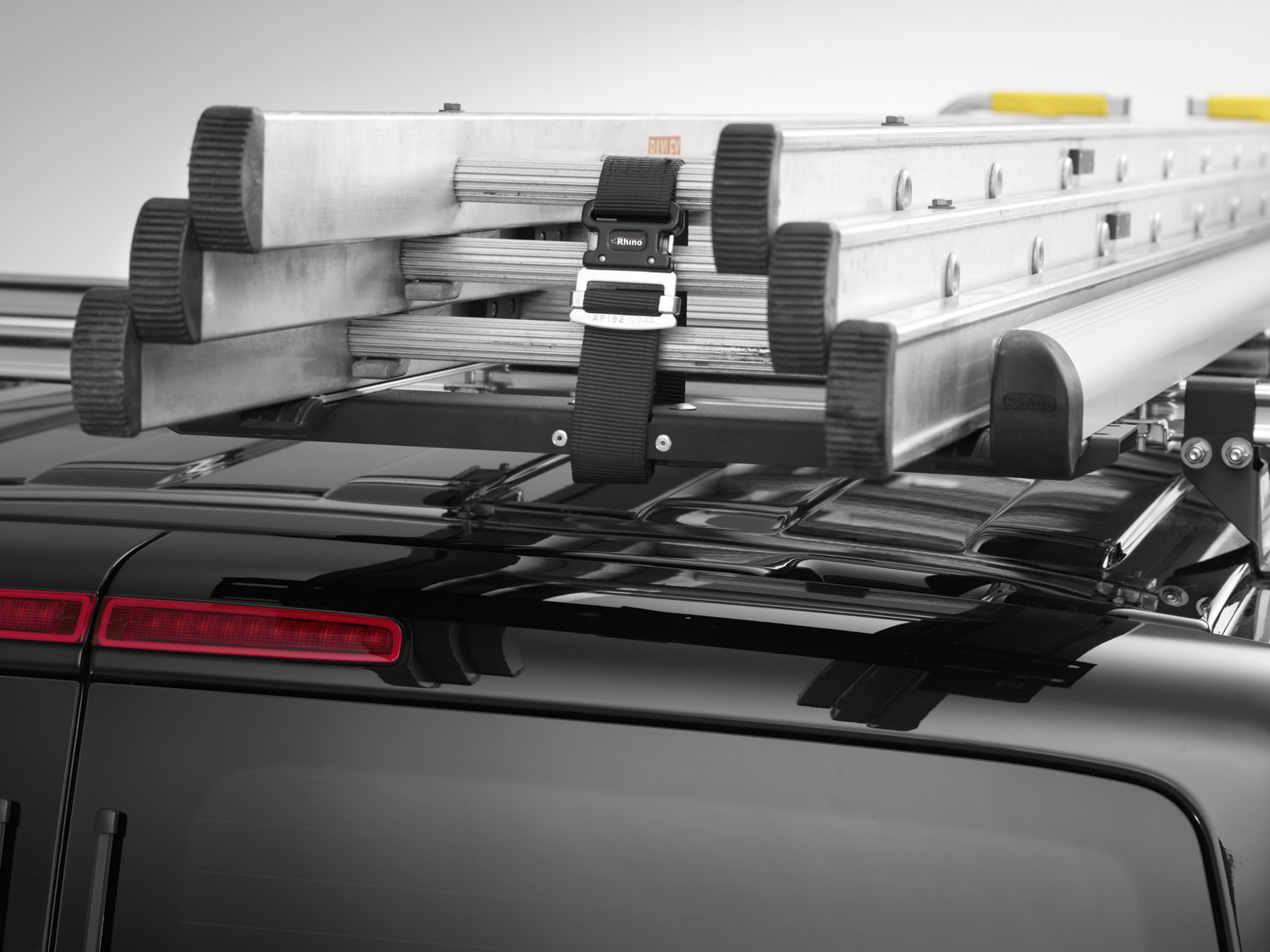

- Tensioning strap for ladders on the rear edge of the vehicle, variable length with buckle
- Snap buckle approved to BS EN 361
- Load capacity 50 kg
- Crash-tested with 20 g
LadderStow® – usability
Particularly suitable for low-height vehicles in conjunction with the Rhino products roof crossbars and roof baskets. You simply can’t do without LadderStow® as a ladder support!

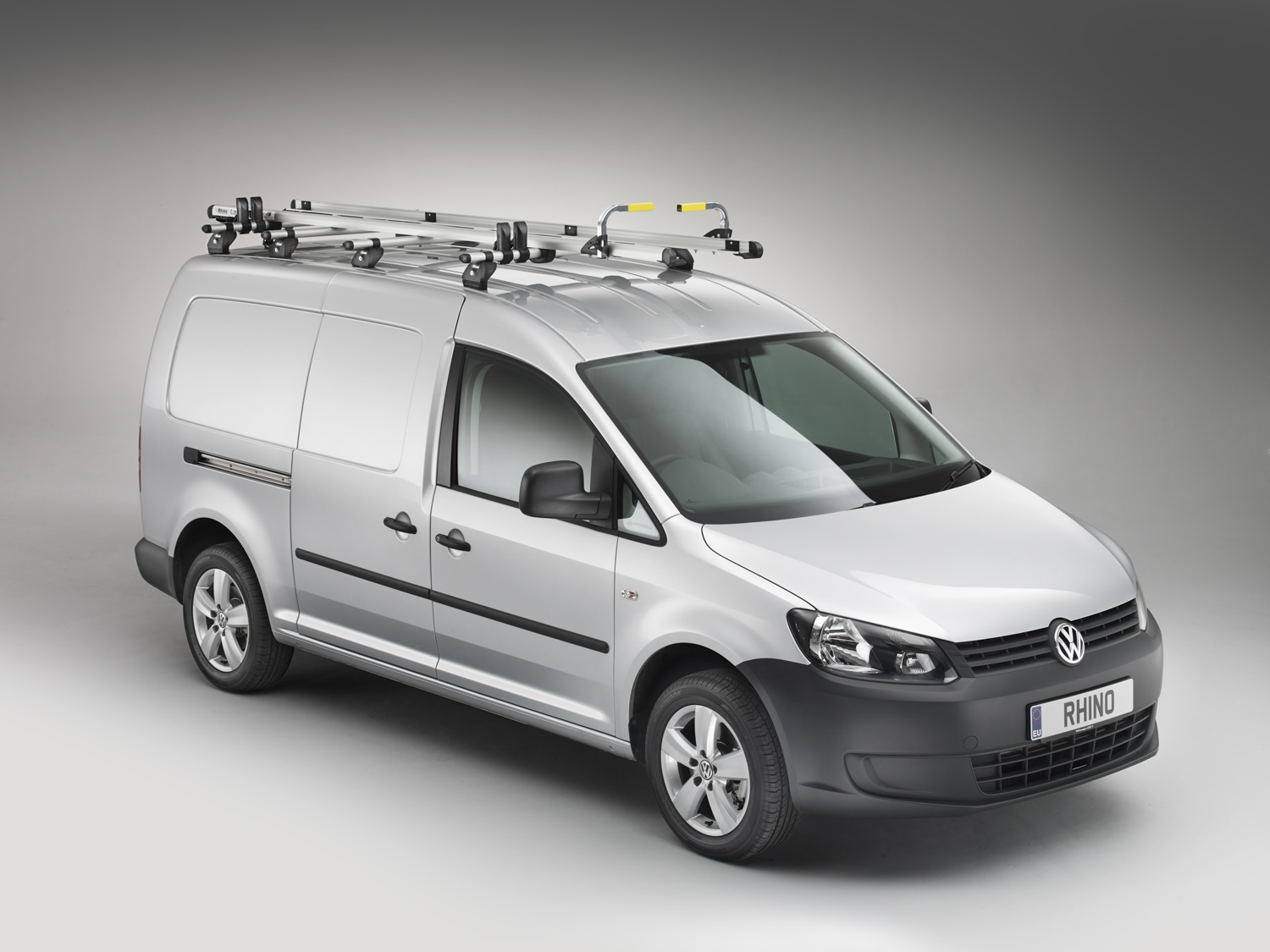

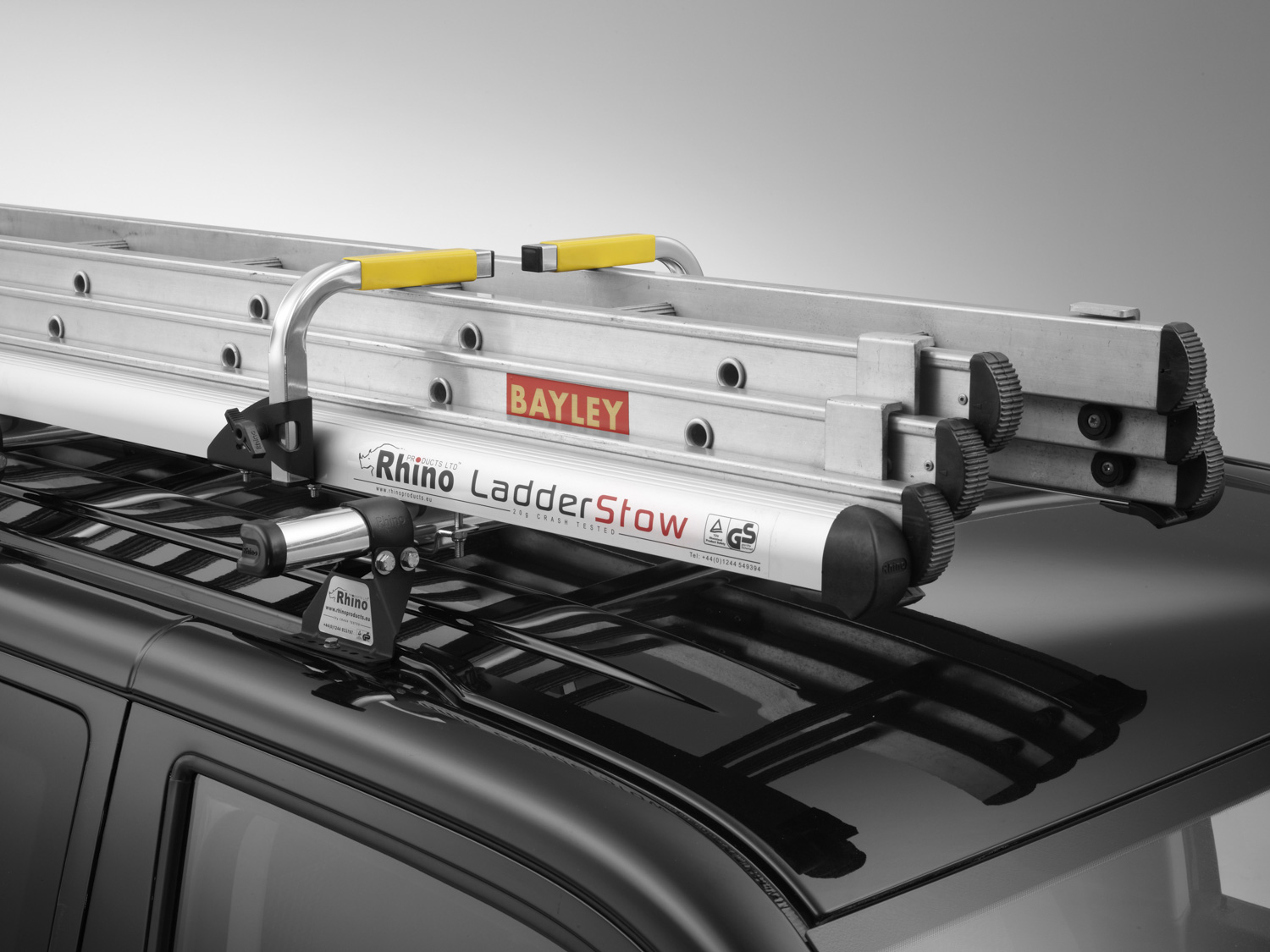

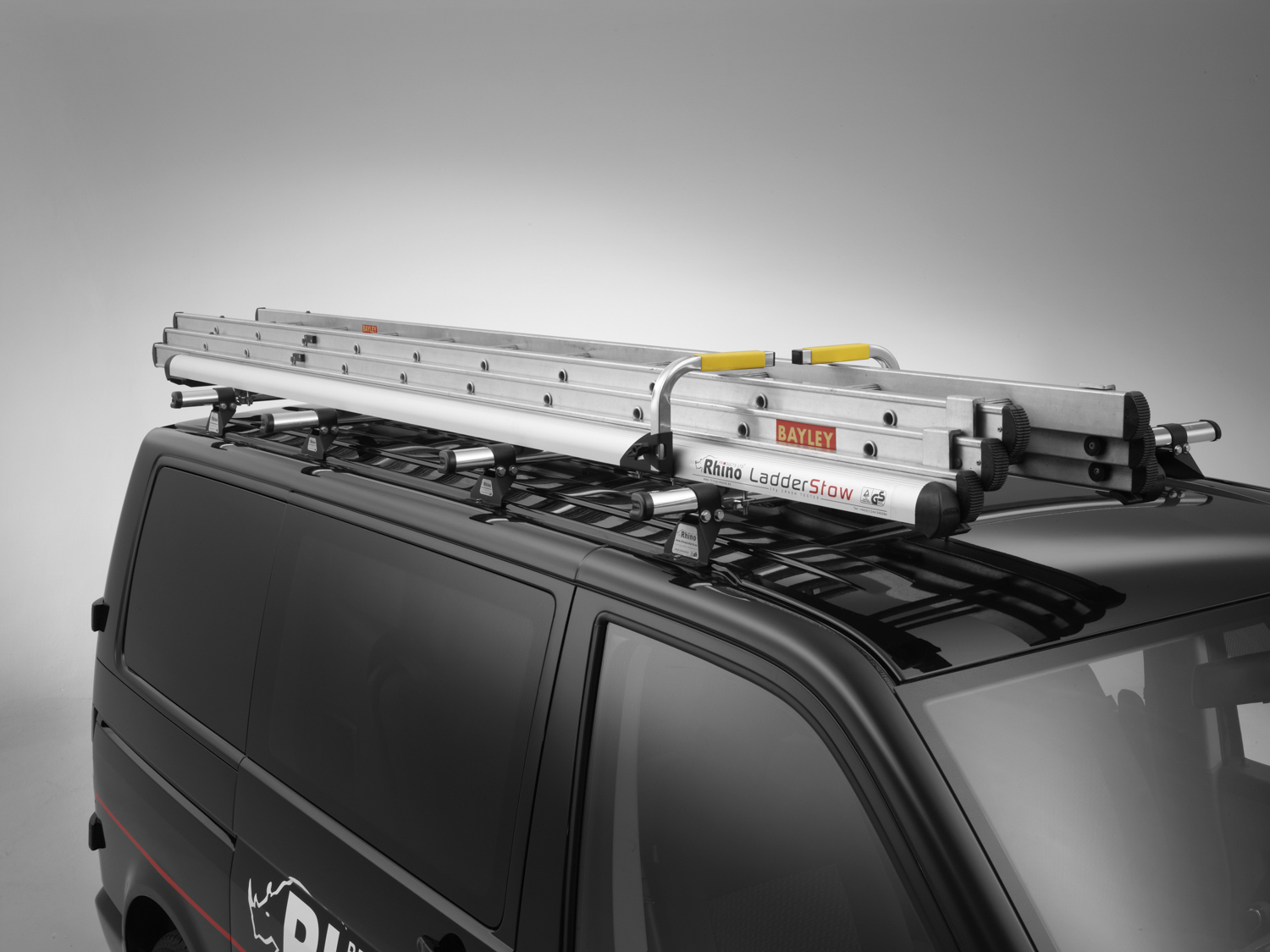

LadderStow® is the ideal solution for transporting ladders on the roof of vans and estate cars. It allows ladders to be transported safely, quickly and easily. The ladder can be fixed securely to both roof crossbars and roof baskets, at a comfortable height for loading and unloading.
LadderStow® – appearance
We take pride in the design of our products, and LadderStow® is no exception. With its anodised aluminium finish, LadderStow® perfectly is a perfect match for all our roof crossbars and roof baskets.
LadderStow® – economic efficiency
The system can be adjusted very flexibly. Ladders of different lengths and widths can therefore be transported with it. The unique design eliminates the need to climb onto the roof of the vehicle when loading and unloading ladders.

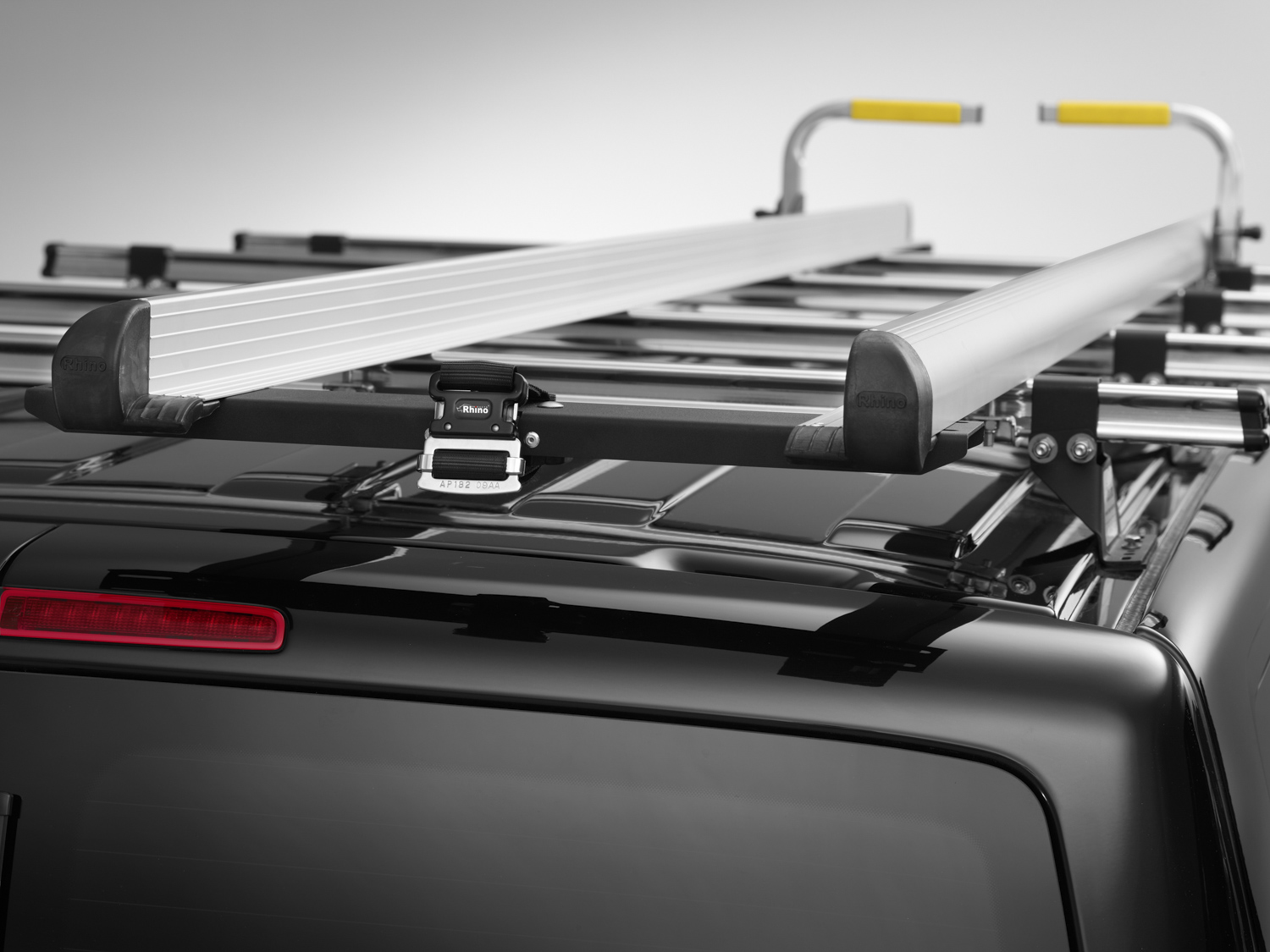

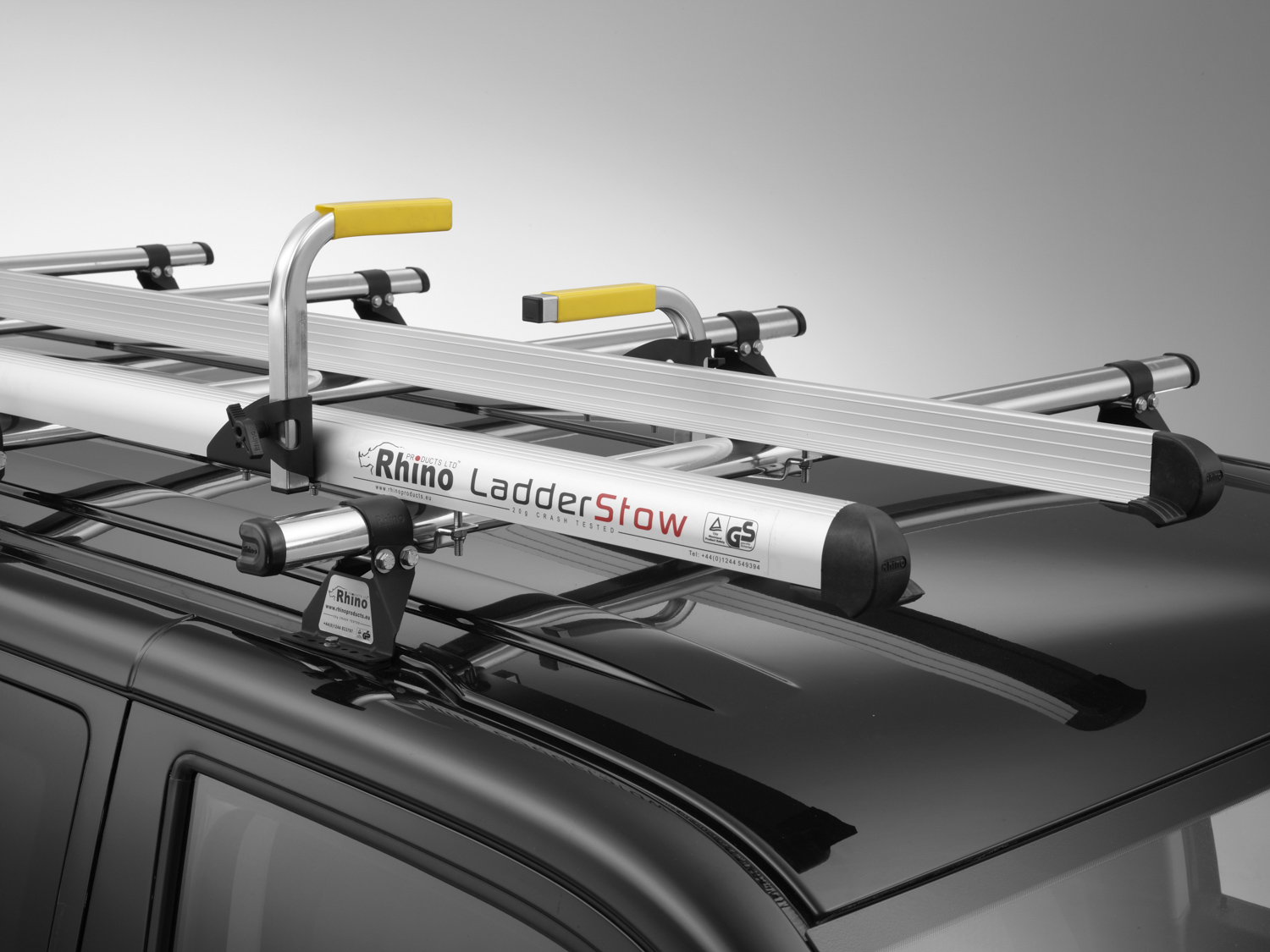

Low-friction glides allow easy loading and unloading. With secure and adjustable aluminium ladder stops at the front and a snap lock at the back of the LadderStow®, any ladder can be securely attached to the roof of the vehicle.
LadderStow® securely holds your ladders, freeing up a lot of interior space and making the vehicle more usable.
LadderStow® – safety
LadderStow® has been crash-tested with 20 g. This is double the industry standard. This means you can be sure that your ladders are not only held securely during normal travel, but that the system can also take the odd hard knock.
Attention: For all LadderStow® systems, a minimum of two crossbars are required for the roof crossbar or roof basket to ensure that they can be properly secured and thus last longer.
Follow instructions!
Warnings against hand injuries
Warning: Safeguard before use!
Warning: Beware of load limit!
